Question

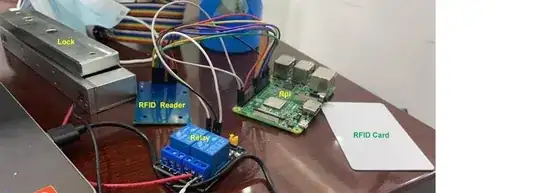

The OP has a Rpi based electric door lock system which can be operated by either manual push button or RRFID card.

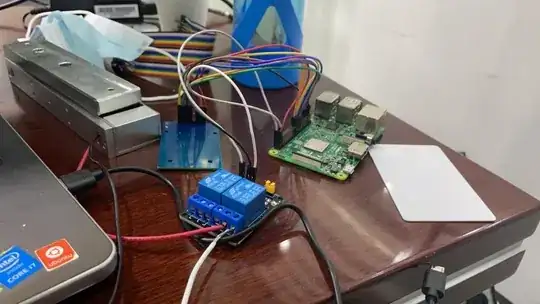

In normal operation the relay controls the electric lock power by 12VDC. When testing before 12V power in on, everything goes well: both push button and RFID card can activate and deactivate the 5V relay (hearing relay clicks).
However, when 12V lock power is switched on, only push button can activate and deactivate relay as before, this time also lock is activate and deactivate.
The big problem is this: RFID can perform the activate/deactivate only once. After the only one off operation, Rpi need to reset to do RFID operation again.
The OP wishes to know why the Rpi should be reset after every RFID operation, and of course how to avoid this silly unnecessarily Rpi resetting.
Update 2021apr25hkt2227
The OP confirms that even the 12V power is switched on before any test, the RFID's only one operation problem does not go away.
Answer
Short Answer
There are two types of electric lock: (a) NO (Normal Open), (b) NC (Normal Close). I am assuming the OP's lock is NC (Normal Close).
For NC lock, the +12VDC power wire goes to relay channel's COM terminal, and goes out at the NC terminal.
When 12V power is switched on, COM and NC is shorted. So +12VDC goes to the positive terminal of the lock. The negative terminal of the lock goes back to the Ground (0V) of the 12VDC power supply.
Now when the RFID reader reads a RFID card, Rpi will checks if RFID card read is valid, and if yes, would trigger the Relay channel. Now COM will disconnect from NC. In other words, the 12VDC power to the lock is cut off.
Now the fun starts at this point. The lock is actually a solenoid, which is an inductor. Now when the power to this inductor is cut off, the current flowing through the inductor path is cut off, and a back EMF voltage and resultant current would occur and flies back through a flyback diode, if there is one.
Either with or without a flyback diode, the back EMF will still trigger a spike voltage signal, and returns to the power ground.
If the 12V power supply ground line is physically connected for any length to the +5V logical power ground line of the Rpi, Rpi would experience a voltage spike and resets the RFID program running at Rpi.
So Rpi needs to be reset to restart the RFID program, and this is what annoyingly do after each RFID operation.
There are a couple of workarounds. The main idea is to decouple the 12V relay and lock power from to the 5V Rpi power.

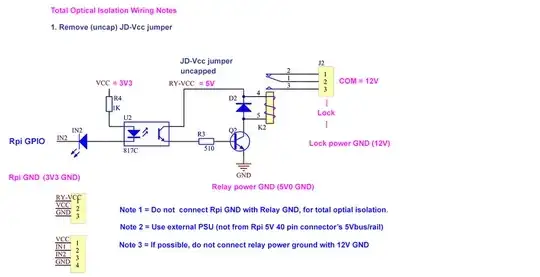

If the OP is using a relay with a JD-Vcc jumper, he can do total optical isolation, as described in Appendix D.
The explanation of the JD-Vcc jumper operation is described in Ref 7.
There are other tricks to prevent relay/lock power from interfering the 5V Rpi logic power from the 12V relay/lock power. These trick include:
(a) Space power lines from logical/control lines
(b) Use two separate power supplies, one 5V (not stepped down from the 12V relay/lock power supply) Rpi, another 12V dedicated for relay/lock.
(c) Use bypass/decoupling capacitors 10uF and 0.1uF near to the power supplies. See Ref 8, Ref 9.
Long Answer
This is a troubleshooting question. I think we need to first study the Rpi python program to see how it works.
/ to continue, ...
References
(1) LXF230 RFID Controlled Magnetic Door Lock Introduction - lesp, GitHub
(2) 12VDC 60kG Electromagnetic door lock, - Kmoon, AliExpress, US$23
(3) RFID Lock Program Penzu Reading Log v0.1
(4) YouTube Video on KawaMall RFID Door Lock Access Control System Installation Demo - 2010jan16 418,761 views
(5) 5V Dual-Channel Relay Module (with optical coupler and JD-Vcc jumper) - Coimponents 101, 2021jan05
(6) 5V Dual-channel Relay Module (with optical coupler and JD-Vcc jumper) - OsoYoo 2017may27
(7) How to properly use a relay module with JD-VCC from Arduino/Raspberry? - Asked 2020jun13, Viewed 7k times
(8) Clean Power for Every IC, Part 1: Understanding Bypass Capacitors - R Keim 2015sep21
(9) Clean Power for Every IC, Part 2: Choosing and Using Your Bypass Capacitors - R Keim 2015sep27
(10) Electromagnetic Door Lock's RFID reader stops working as soon as relay is engaged - Arduino Forum 2020sep13
(11) (My rfid-rc522 reader stops reading after some time, how can I debug it? - EESE 2021apr28
(12) SDC Electromagnetic Door Lock Catalog - SDC
(13) SDC Excell Series Data Lock (250mA, 12VDC) - DSC
(14) YouTube Video on Alumiun Window Electromagnetic (Door) Lock Installation (3 minutes) - Gianni Gem, 2018nov06, 58,499 views
(15) Reducing sound noise when recording with Pi - Asked 1 year ago, Viewed 892 times
(16) Back EMF Suppression (For Magnetic Door Locks) - Progeny
(17) CY-180 12V 180kG Single Door Magnetic Door Lock - TaoBao ¥45
(18) How to use 12VDC Solenoid Door Lock - tlfong01 rpi.org.forum 2019jan13
(19) Rpi (Magnetic Door Lock, Relay, Dual SMPS) freezes after not using for 1-2 days. Is memory leaking? Asked 2 years ago Viewed 35 times
(20) Electronic Door Lock Mini Magnetic Locks 60KG DC 12VDC 24VDC 100LBS EM Lock Access Control Electromagnetic Lock - AliEx US$4
(21) AliEx Magnetic Door Catalog
(21) Schotty Diode Selection Guide - 2019-Jan-17
(22) Back EMF Killed my PSU Postmortem 1/2
(23) Back EMF Killed my PSU Postmortem 2/2
(24) RFID reader (SimpleMFRC522, RC522, THM3060) and RF Power Meter - RpiSE, 2020apr21
(25) Door Controller Using JD-Vcc Relays - rpi.org/forum 2018jun21
(26) DC6V 1.5A 11.4mm 200g Electromagnetic Solenoid Door Lock - AliExpress US$14 (The OP's solenoid door dock)
(27) How do I use three RC522 RFID readers together? Asked 1 year, 10 months ago Active 1 month ago Viewed 1k times
(28) SPI-Py: Hardware SPI as a C Extension for Python
(29) RFID and LED Script disables RFID reader until reboot - Asked 1 year, 1 month ago Active 1 year, 1 month ago Viewed 94 times
(30) How can Rpi SPI python read the MFRC522 RFID / NFC module? Asked 1 year, 1 month ago Active 2 months ago Viewed 2k times
(31) LY-03 DC12V/24V Small Electromagnetic Drawer/Bolt Lock - AliExpress US$9
(32) LY-03 12V, 350mA/600mA, 10mm travel distance, 1 second, mini electromagnetic door/cabinet lock - TaoBao ¥10
(33) Power MOSFET Driving Big Motor Problem - RpiSE Asked 2019feb09 Viewed 706 times
(34) How to measure inductance (of magnetic door lock) - Rose-Hulman Online 8,195 views
(35) Deedlock Electromagnetic Locks - Slimline Face to Face (Showing armature button)
(36) LM358 (NE555) Square Wave Signal Generator Module Pulse Frequency Duty Cycle Adjustable (0.07Hz-2kHz, 0.45ms to 15s). - AliExpress US$0.85
Appendices
Appendix A - LX230 RFID Rpi python program listing
The main test program, without the RFID library, is only 80 something lines long. So it is worth our time studying carefully the complete listing.
(3) RFID Lock Program Study Notes v0.1 Penzu Link
LXF230-RFID-Door-Lock/SimpleMFRC522.py - lesp 2021apr25hkt2156
https://github.com/lesp/LXF230-RFID-Door-Lock/blob/master/SimpleMFRC522.py
import MFRC522
import RPi.GPIO as GPIO
class SimpleMFRC522:
READER = None;
KEY = [0xFF,0xFF,0xFF,0xFF,0xFF,0xFF]
BLOCK_ADDRS = [8, 9, 10]
def init(self):
self.READER = MFRC522.MFRC522()
def read(self):
id, text = self.read_no_block()
while not id:
id, text = self.read_no_block()
return id, text
def read_id(self):
id, text = self.read_no_block()
while not id:
id, text = self.read_no_block()
return id
def read_id_no_block(self):
id, text = self.read_no_block()
return id
def read_no_block(self):
(status, TagType) = self.READER.MFRC522_Request(self.READER.PICC_REQIDL)
if status != self.READER.MI_OK:
return None, None
(status, uid) = self.READER.MFRC522_Anticoll()
if status != self.READER.MI_OK:
return None, None
id = self.uid_to_num(uid)
self.READER.MFRC522_SelectTag(uid)
status = self.READER.MFRC522_Auth(self.READER.PICC_AUTHENT1A, 11, self.KEY, uid)
data = []
text_read = ''
if status == self.READER.MI_OK:
for block_num in self.BLOCK_ADDRS:
block = self.READER.MFRC522_Read(block_num)
if block:
data += block
if data:
text_read = ''.join(chr(i) for i in data)
self.READER.MFRC522_StopCrypto1()
return id, text_read
def write(self, text):
id, text_in = self.write_no_block(text)
while not id:
id, text_in = self.write_no_block(text)
return id, text_in
def write_no_block(self, text):
(status, TagType) = self.READER.MFRC522_Request(self.READER.PICC_REQIDL)
if status != self.READER.MI_OK:
return None, None
(status, uid) = self.READER.MFRC522_Anticoll()
if status != self.READER.MI_OK:
return None, None
id = self.uid_to_num(uid)
self.READER.MFRC522_SelectTag(uid)
status = self.READER.MFRC522_Auth(self.READER.PICC_AUTHENT1A, 11, self.KEY, uid)
self.READER.MFRC522_Read(11)
if status == self.READER.MI_OK:
data = bytearray()
data.extend(bytearray(text.ljust(len(self.BLOCK_ADDRS) * 16).encode('ascii')))
i = 0
for block_num in self.BLOCK_ADDRS:
self.READER.MFRC522_Write(block_num, data[(i16):(i+1)16])
i += 1
self.READER.MFRC522_StopCrypto1()
return id, text[0:(len(self.BLOCK_ADDRS) * 16)]
def uid_to_num(self, uid):
n = 0
for i in range(0, 5):
n = n * 256 + uid[i]
return n

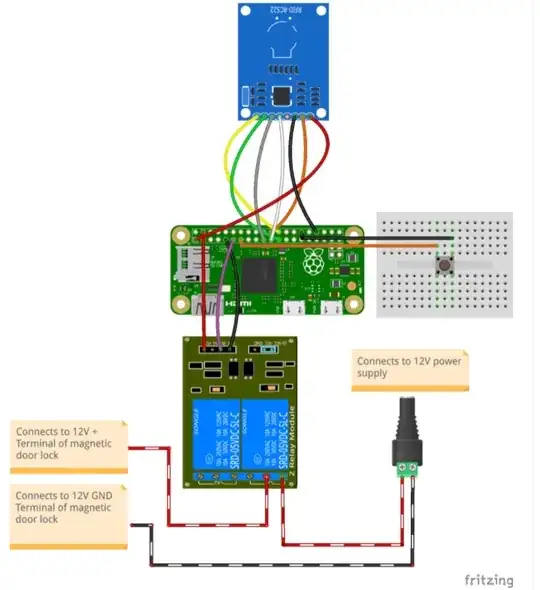

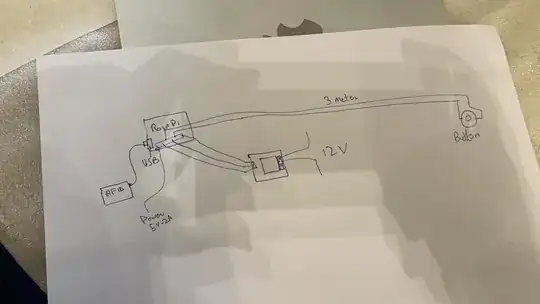

Appendix C - Wiring Diagram

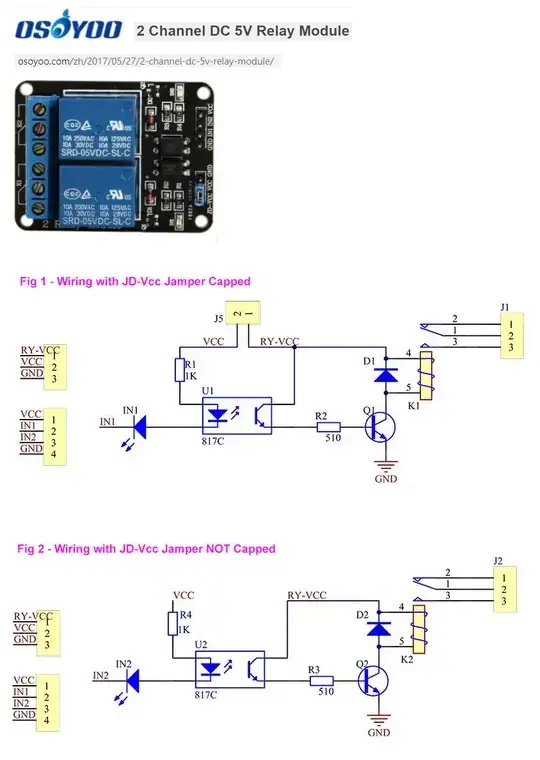

Appendix D - JD-Vcc Jumper Relay Wiring Diagram
Appendix E - Total optical isolation wiring diagram for the OP's application

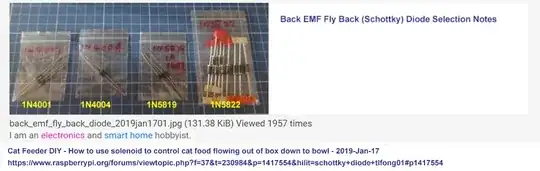

Appendix F - Flyback Schottky Diode to protect PSU powering Magnetic Door
(21) Schotty Diode Selection Guide - 2019-Jan-17
(22) Back EMF Killed my PSU Postmortem 1/2
(23) Back EMF Killed my PSU Postmortem 2/2

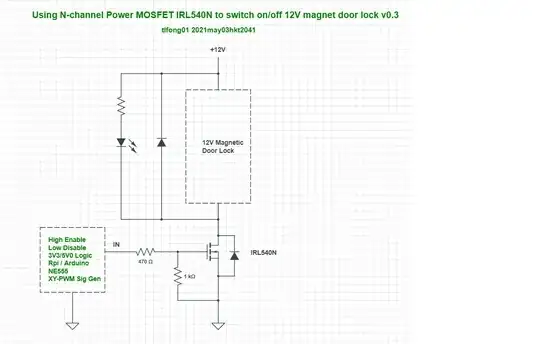

Appendix G - N-channel Power MOSFET Controlled Magnetic Door Lock v0.3

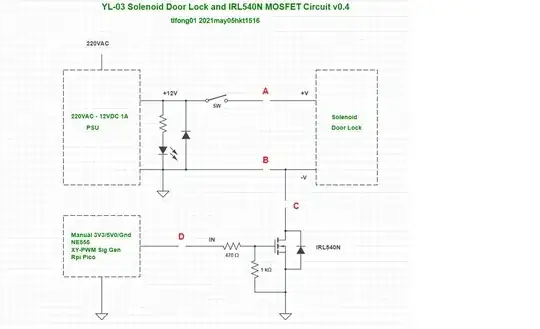

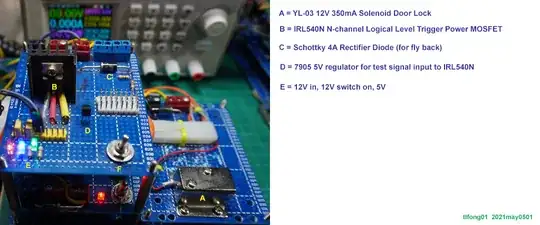

Appendix H - YL-03 Solenoid Door Lock and IRL540N N-channel Power MOSFET V0.4

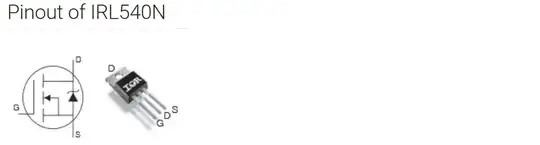

Appendix I - IRL540N Pinout
