6

I'm making a custom case for the Raspberry Pi and need a CAD model that is accurate to work with.

I've seen a few of them on GrabCAD, but I'm uncertain if those are good enough. Are there no official CAD files of the Raspberry Pi?

syb0rg
  • 8,178
  • 4
  • 38
  • 51
mugetsu
  • 295
  • 3
  • 4
  • 8

2 Answers2

9

If you look on the Raspberry Pi Wiki Resources, under Documentation you will find 3D CAD files:

RPi Model B 3D CAD files

Theses are various 3D CAD Versions in both RAR and ZIP.

I would say those are the "official" 3D CAD files. You can cross reference some of the dimensions from the Raspberry Pi's FAQ:

What are the dimensions of the Raspberry Pi?

The Raspberry Pi measures 85.60mm x 56mm x 21mm, with a little overlap for the SD card and connectors which project over the edges. It weighs 45g.

syb0rg
  • 8,178
  • 4
  • 38
  • 51
0

There are CAD Models on Grabcad that are made around the official documentation:

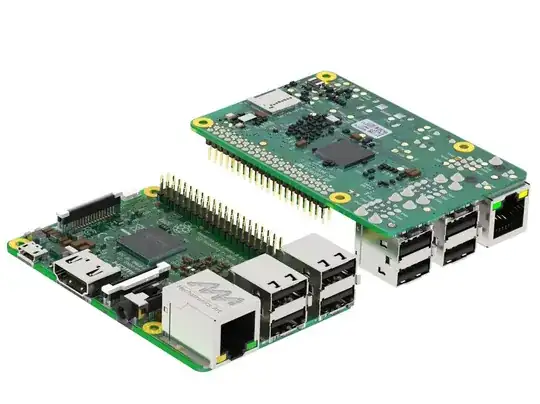

Raspberry Pi 3 Model B 3D CAD

Alexandre Willame
  • 131
  • 7
