I've been trying for long time communicate arduino and raspberry pi using NRF24L01 module, for now it has been impossible.

I followed the next tutorial: Tutorial NRF24L01

connections Arduino: CE - 9, CNS - 10........ Raspberry pi 3 model B V1.2: CE - 17, CSN - SPIO CS0 "pin 24"

OUTPUTS:

Arduino:

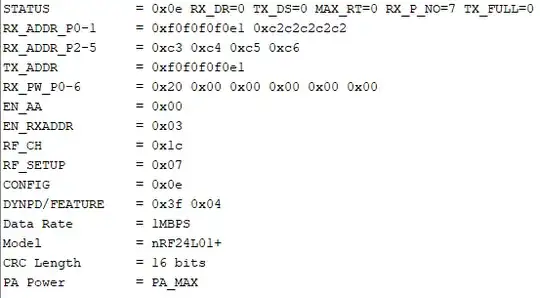

Arduino OUTPUT

Raspberry:

Raspberry output

Pipes setups :

Arduino : radio.openWritingPipe(0xF0F0F0F0E1LL);

Raspberry:

pipes = [[0xE8, 0xE8, 0xF0, 0xF0, 0xE1], [0xF0, 0xF0, 0xF0, 0xF0, 0xE1]]

radio.openReadingPipe(1, pipes1)

Thanks for any help!

Santiago Mj
  • 11
  • 2

2 Answers2

1

Try to correct your PA Power levels, on both sites must be the same. Try to correct your CRC Length, on both sites must be the same. Check if addreses are correctly set: on RPI TX addr must be same as Arduino RX addr and Arduino TX Addr must be the same as RPI addr. First rule: setup must be same on both sides of transmission, and addresses must be mirrored.

I don't used the library given in this tutorial, but it looks like fork of this one: https://github.com/nrf24/RF24 documentation: http://tmrh20.github.io/RF24/

I use this one and it works fine. If you will try this one, I also suggest to use examples included in this library as starting point.

Łukasz Jakubek
  • 366
  • 1
  • 9
1

This answer fixed my issues

In lib_nrf24.py in function:

def begin(self, csn_pin ... after self.spidev.open add:

self.spidev.max_speed_hz = 4000000
Jak
  • 131
