I am trying to figure out a good split for the CPU/GPU. Is there a way to monitor the CPU and GPU usage to see where I should make the split?
Asked
Active
Viewed 2.4e+01k times
7 Answers
22
You can get a real-time view of memory usage using either the top or htop command. You may need to install htop if you get the message htop: command not found. Assuming you are using Raspbian, install it by running sudo apt-get install htop
Bert
- 862
- 7
- 10
14
One easy solution is to get the Raspberry Pi itself to manage how the RAM is split between the CPU and GPU with dynamic memory split. While raspi-config cannot do this for you, there are example settings for /boot/config.txt available on the forums.
shapr
- 389
- 1
- 6
11
For CPU usage and system memory, try the htop command, its very detailed and customizable, if this doesnt work use top (or rather apt install htop).
GPU memory usage (amongst many other details) can be seen with /opt/vc/bin/vcdbg reloc stats. Total memory is at the top and free memory is at the bottom
Regarding the optimum CPU/GPU split. It really depends on what you are using your RPi for. If your not playing videos and games (GPU optimized), then give the CPU the most amount of RAM. Also if your running "headless" (Not connected to a screen) then assign the CPU as much RAM as you can.
Chromium GPU support is deeply dependent on what version of RPi you have and formats. And what you expect to be off loaded to the GPU.
Vincent P
- 2,210
- 15
- 24
9
To monitor the RAM usage, you can run free -h -s 1. Every second (-s 1), a similar table will be displayed:
total used free shared buffers cached
Mem: 438M 146M 292M 0B 15M 102M
-/+ buffers/cache: 28M 409M
Swap: 99M 0B 99M
The line Mem: is what you are looking for.
In the example above, you can see that, on a total of 438MB, 146MB are currently used, and 292MB remain free. On my 512MB RPi, I have set 64MB for the GPU.
Brethlosze
- 249
- 3
- 11
Morgan Courbet
- 3,703
- 3
- 23
- 38
4
To monitor the CPU, RAM and SWAP usage in Raspbian, you can use TOP or HTOP.

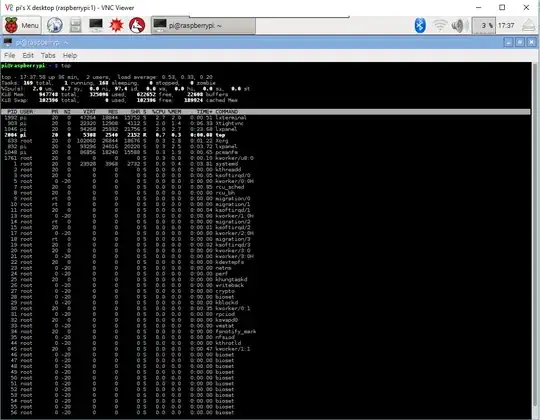

In terminal, run top. TOP is available by default, and gives reasonably good details.
But, I find HTOP to be more useful, with better details and features available. HTOP is not available by default, and need to be installed.
Run sudo apt-get update && sudo apt-get install htop in Terminal to install HTOP.

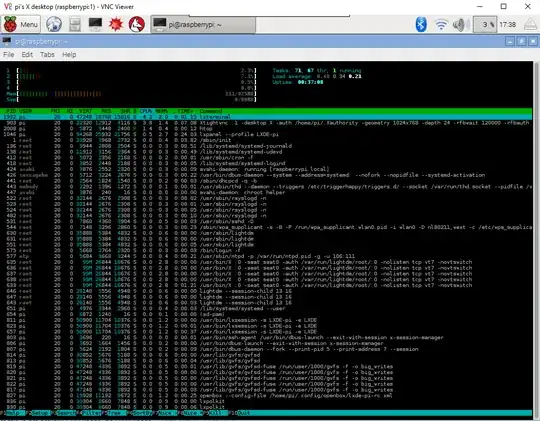

In terminal, run htop after the install is completed.
Hope that helps.
Dr.Viper
- 209
- 2
- 7
3
The command that will give you insight into what's being allocated by the GPU is sudo vcdbg reloc. The output looks like what begins here. In my case, I could see that the 236M allocated was too close to the value in /boot/config.txt -> gpu_mem=256 so I needed to bump that up a little.
Relocatable heap version 4 found at 0x30000000
total space allocated is 236M, with 234M relocatable, 2.3M legacy and 0 offline
1 legacy blocks of size 2359296
free list at 0x3ad9aaa0
352 free memory in 2 free block(s)
largest free block is 320 bytes
0x30000000: legacy block 2.3M
0x30240000: free 320
[ 80] 0x30240140: used 608 (refcount 1 lock count 0, size 540, align 4, data 0x30240160, d0rual) 'GLXX_TEXTURE_T'
[ 78] 0x302403a0: used 192 (refcount 1 lock count 0, size 128, align 4, data 0x302403c0, D1rual) 'GLXX_BUFFER_INNER_T.storage'
OutsourcedGuru
- 71
- 2
- 4
3
This question is old, but the accepted answer does not tell how to monitor the GPU usage.
There is a way -- tested only with the closed source broadcom drivers:
# /opt/vc/bin/vcdbg reloc stats
Relocatable heap version 4 found at 0x17800000
total space allocated is 116M, with 114M relocatable, 2.3M legacy and 0 offline
1 legacy blocks of size 2359296
small_allocs : 1163
allocs : 6731
alloc_fails : 0
legacy_block_fails : 0
compactions : 0
discard_compactions : 0
aggressive_compactions : 0
aggressive_compaction_waits : 0
aggressive_compaction_timeouts: 0
locks : 0
small_locks : 0
free list at 0x1ebf24e0
86M free memory in 6 free block(s)
largest free block is 86M bytes
For more info,
# /opt/vc/bin/vcdbg help
Usage: /opt/vc/bin/vcdbg command [args ...]
Where command is one of the following:
addr2line ADDR [ADDRS...] - Convert addresses to function names
bootfs [dump|get [ARGS]] - Commands related to BootFS
dump ADDR|SYM [LEN] - Dumps memory (Hex and ASCII)
dumpstate - One shot dump of all minimal commands
elfsym SYMBOL [SYMBOLS...] - Prints out the values of the indicated ELF-file symbol
grep WORD - Search memory for a 32-bit word
help [command] - Prints command help information
hist - Processes task history log
hostmemuse - Dump host memory usage scoreboard
image ADDR|HNDL|all W H TYPE - Save image data to file in current directory, with given size and type (8bpp, rgbx32, tf_rgbx32, yuv420, ...)
isp_timeout_dump - Dump ISP hardware state after a timeout
log COMMAND [ARGS] - Commands related to logging
malloc - Report on the VC malloc heap
pools [NAME] [images] - Report on vc_pools [optionally save images to files in current directory]
reloc [small|stats] - Dump out relocatable heap [or just small, or stats]
save FILENAME [ADDR|SYM [LEN]] - Saves the indicated memory (or all) to a file
set ADDR|SYM VALUE [VALUES...] - Writes 32-bit words to memory (address, or VC_DEBUG_VAR or ELF symbol)
sym SYMBOL - Prints out the values of the indicated VC_DEBUG_VAR symbol
syms - Prints out the values of the available VC_DEBUG_VAR symbols
trash ADDR [LEN] - Trash VC memory [default: 1 byte]
tx - Examine ThreadX state
vchiqdump - Examine vchiq state
vchiqslot - Examine vchiq slot data
version - Print VC firmware version
