I know that my USB powered Hard Drive doesn't work, but what is the minimum power requirement that the Raspberry Pi can fulfil for devices that connect via USB?

Alex L
  • 7,615
  • 12
  • 44
  • 53
Jivings
  • 22,656
  • 11
  • 94
  • 140

3 Answers3

106

NOTE:

Please note that this answer was written in June, 2012, and has not been revised since the day after it was submitted. Therefore:

1. The Raspberry Pi model to which this Q & A refer is the first generation Model B (maybe Model A).

2. The answer given here (100mA) is incorrect for later models of the Raspberry Pi.

END of NOTE

Recommended: 100mA

You should not draw more than about 100mA from the USB ports.

Source

In reality, it is more complicated than this.

I've taken two screenshots from the Device B schematic (released here):

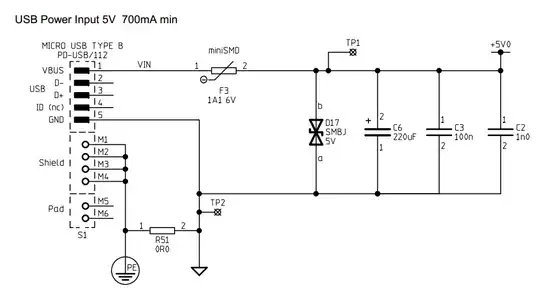

Power in (fig A):
USB Power in

We can see that the 5 volt line (+5V0) is powered directly from the USB input power, through a 1.1A, 6V Polyfuse (miniSMD). I believe this means that the 5V input is current limited to 1.1A (maximum hold current, not peak).

Let's assume that you're powering the device from a regulated 5V supply capable of supplying at least 700mA.

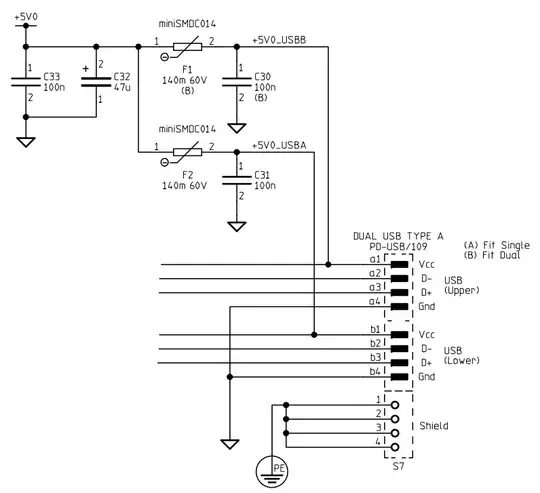

USB Power out (fig B):
USB power out

As we can see from fig B, the USB ports are current-limited by polyfuses (miniSMDC014) to 140mA (constant draw).

Some users have discovered that their polyfuses at 100mA have approx 5 Ohm resistance, causing a voltage drop of V = iR = 0.1*5 = 0.5 V. This isn't ideal, as this means the output USB voltage would be 5 - 0.5 = 4.5 V. (This may cause some devices to not function if they expect 5.0 V)

As the current draw on the USB increases (ie to 150mA), voltage drops further - 0.15*5 = 0.75 V, resulting in an output voltage of 5 - 0.75 = 4.25 V, which is below the USB spec minimum voltage of 4.40V (source). This is assuming the resistance doesn't increase with current draw, although in reality the resistance/current draw plot will look something like this:
resistance/voltage (Source)

From a Q/A with Pete Lomas:

The fuses kick in hard around 280mA and fold back and limit to 140mA. If you remove them then all you have for protection is the 700mA inbound fuse. The tracking on the board is good for 500mA+ so you could if you really wanted to. What about a powered hub – to power the Pi and bigger USB devices.

To power higher power devices: (i.e. USB 2 devices)

You should use a powered USB hub, that can supply >= 0.5A per USB port. This means if your USB hub has 4 ports, it should use at least a 2A power supply.

Other options:

If you don't want to use a USB hub with a second power supply, you can do one of the following options:

These methods are not recommended, and may damage your board/devices.

  • Create/buy a split USB cable that uses a separate 5V source (such as your input source).
    Raspi USB out (pins TX, RX, GND) ___
                                        \_____ device
    5V supply     (pins 5V, GND)     ___/

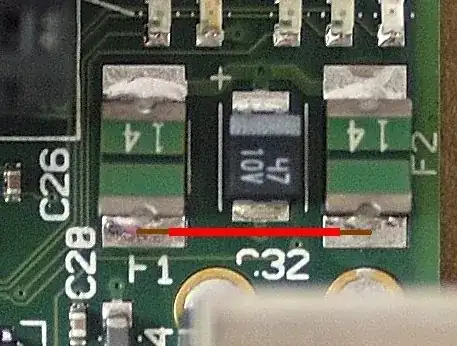

  • Join the output of the two polyfuses (solder a jumper across). As the polyfuse current is being split, this will allow up to ~200mA for one USB device, or 50/150 across two.

Soldering jumper across polyfuses

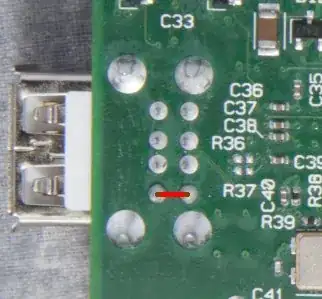

You could also join the VCC of both USB ports: (untested)

Joining VCC

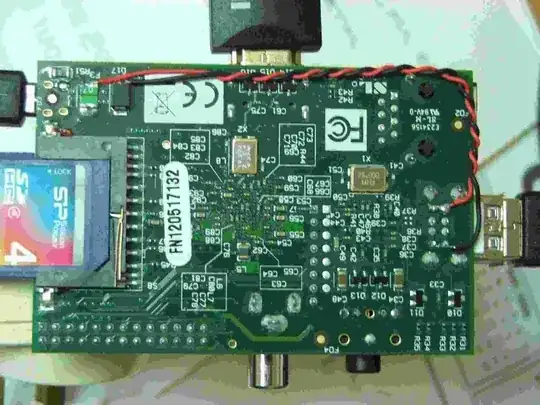

  • Connect the input VCC to the output VCC (disconnect the polyfuses first?). This will allow you to draw as much (combined) as your input can supply.

Input to output

Disclaimer: I am not involved in the design of the Raspberry Pi, and am not an expert on polyfuses. Modifying your Raspberry Pi is not recommended, will void your warranty, and may damage things. Please do not sue me.

Please feel free to correct any mistakes I have (probably) made!

Seamus
  • 23,558
  • 5
  • 42
  • 83
Alex L
  • 7,615
  • 12
  • 44
  • 53
14

Just noting that the rev 2.0 board no longer has the USB polyfuses, just the input 1.1A polyfuse. So the issues mentioned here should no longer be present in current generation Raspberry Pi boards.

source

bric3
  • 103
  • 4
Nakedible
  • 1,561
  • 1
  • 13
  • 18
2

As of 2024, this information is available in the Power Supply section of the official docs. Reproduced here for convenience:

Product PSU minimum USB max out
Raspberry Pi 1 Model A 700mA 500mA
Raspberry Pi 1 Model B 1.2A 500mA
Raspberry Pi 1 Model A+ 700mA 500mA
Raspberry Pi 1 Model B+ 1.8A 1.2A
Raspberry Pi 2 Model B 1.8A 1.2A
Raspberry Pi 3 Model B 2.5A 1.2A
Raspberry Pi 3 Model A+ 2.5A Limited by PSU, board, and connector ratings only.
Raspberry Pi 3 Model B+ 2.5A 1.2A
Raspberry Pi 4 Model B 3.0A 1.2A
Raspberry Pi 400 3.0A 1.2A
Raspberry Pi 5 3.0A
5.0A		 600 mA
1.6A
Raspberry Pi Zero 1.2A Limited by PSU, board, and connector ratings only
Raspberry Pi Zero W 1.2A Limited by PSU, board, and connector ratings only.
Raspberry Pi Zero 2 W 2A Limited by PSU, board, and connector ratings only.

(Please edit and update this post if new models are added to the official list only.)
