I have recently created a sketch for an ATTiny85.
My project consists of:
- 1x ATTiny85 IC only
- 1x 433MHz RF module => using data pin
2 - 2x input digital pins => using pin
3and pin4
Running at 16MHz using the ATTiny85 board core from https://github.com/damellis/attiny
All running on a 5v 1A 7805 only using 24.4mA idle 29.5mA when TXing.
I have optimized my code a bit and the sketch works as intended. However sometimes the RF 433 module just keeps sending data for a few seconds instead of sending a burst then waiting for my 7 second timeout.
I do use the internal pullup resistors on pin 3 and 4.
This happens intermittently.. I would like to know if anyone has had a similar problem and knows how to prevent this "runaway transmission".. Or suggestions code improvements etc.
Strangely enough I can get 450m+- line of sight (farm land) distance accurate pings on my sensitive receiver using this cheap module.

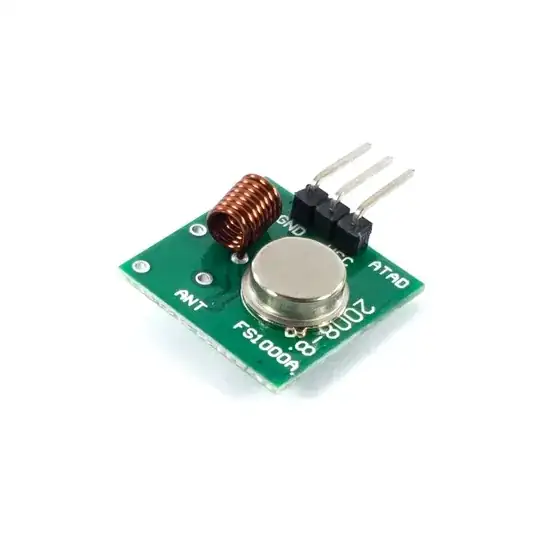

RF 433 Module
I have the one with the SMD coil I have also soldered a 17.3cm LAN wire as antenna.

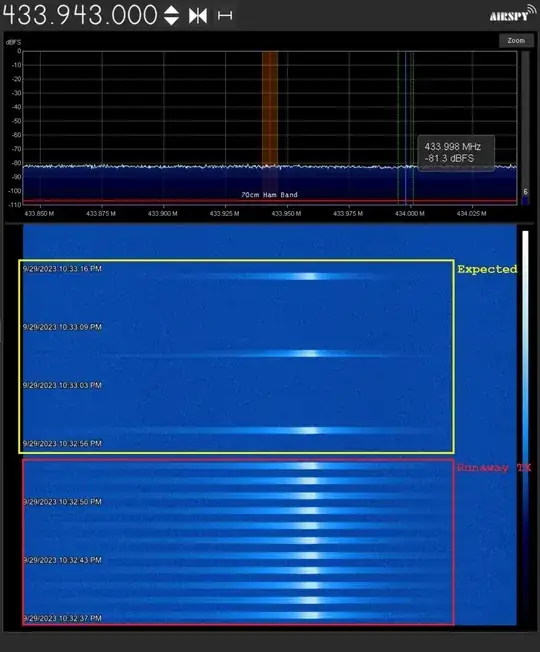

SDR Waterfall
I expect a constant burst every 7s.
Code
The code starts by looping a switch statement over states when an input is H/L or a timer runs out a state is changed.
When a trigger state is initiated a for loop copies and concatinates a condenses hex string then the next for loop sends these signals over pin 2.
After the signal is sent the state then changes to a timeout to wait before sending a pulse again.
This is where the problem is.
Sometimes the signal keeps sending as if the state is stuck for a few seconds but then the timer starts working as expected...
The longer 15min timer works fine, it's only the 7s and 9s loops that seem to have this issue.

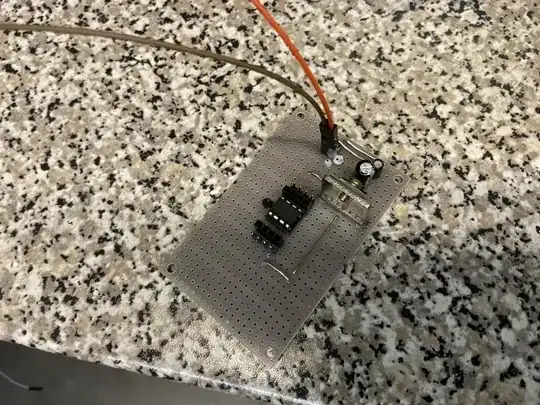

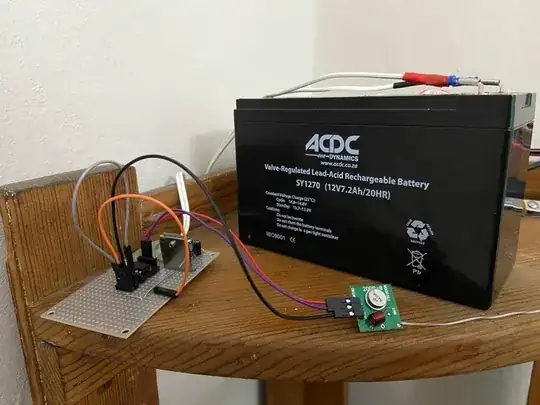

Pictures of testing PCB
Full sketch [updated with suggestions]
#include <stdint.h>
#include <avr/io.h>
#include <util/delay.h>
#define DATA_PIN PB2// digital pin 2
#define ALARM_TRIGGER_PIN PB3// digital pin 3
#define LEARN_PIN PB4// digital pin 4
//15min= 900000 ms
//16min = 960000 ms
//20min= 500000 ms
const unsigned long DELAY_TIME_ZONE_HEARTBEAT = 900000;//15min
const unsigned long DELAY_TIME_CHECKALARM_TIMEOUT = 7000;//7sec
const unsigned long DELAY_TIME_CHECKLEARN_TIMEOUT = 9000;//9sec
unsigned long Delay_Start_Check_Alarm = 0;
unsigned long Delay_Start_Heartbeat = 0;
unsigned long Delay_Start_Learn = 0;
char LEARN[] ="269369a6924d36da6c800";//condensed hexadecimal signal; learnState/tamper same signal
char ALARM[] = "da4da69a4934db69b200";//condensed hexadecimal signal
char HEARTBEAT[] ="1269b4d349269b6d36400";//condensed hexadecimal signal
uint16_t pulse = 1100;//Attiny85 chip needs more of delay time
uint8_t i;
//custom states
enum State
{
ALARMTIMEOUT,
CHECKING,
HEARTBEATTIMEOUT,
HEARTBEATSEND,
LEARNTIMEOUT,
LEARNSEND,
ALARMSEND
};
enum State state;
void setup()
{
DDRB |= (1 << DATA_PIN);//replaces pinMode(DATA_PIN, OUTPUT);
DDRB &= ~(1 << ALARM_TRIGGER_PIN); //replaces pinMode(ALARM_TRIGGER_PIN, INPUT);
DDRB &= ~(1 << LEARN_PIN); //replaces pinMode(LEARN_PIN, INPUT);
PORTB |= (1 << ALARM_TRIGGER_PIN);//initiate alarm pin pullup
PORTB |= (1 << LEARN_PIN);//initiate learn pin pullup
ADCSRA &= ~(1 << ADEN); //Disable ADC, saves ~230uA
Delay_Start_Check_Alarm = Delay_Start_Heartbeat = Delay_Start_Learn = millis();//set to start millis
state = CHECKING;//initial state
}
void Check_Alarm_And_Heartbeat()
{
unsigned long Mill = millis();//set to current time
uint8_t alarmState = PINB&8;//read alarm pin 3
uint8_t learnState = PINB&16;//read learn pin 4
//main switch loop
switch (state)
{
case CHECKING:
//constant checking here
if((alarmState) && (!learnState))
{
state = ALARMSEND;//set state
Delay_Start_Check_Alarm = Mill;//keep time
}
//learn loop
if((learnState) && (!alarmState))
{
state = LEARNSEND;//set state
Delay_Start_Learn = Mill;//keep time
}
//continue heartbeat
if((!alarmState) && (!learnState))
{
state = HEARTBEATTIMEOUT;//set state
}
//if both are high prioratize learnState/tamper signal
if((alarmState) && (learnState))
{
state = LEARNSEND;//set state; learnState/tamper same signal
Delay_Start_Learn = Mill;//keep time
}
break;
case LEARNSEND:
{
state = LEARNTIMEOUT;//set state
char LEARNFINAL[168];//make LEARNFINAL var and define length
strcpy(LEARNFINAL, LEARN);//copy LEARN to new LEARNFINAL var
for (uint8_t i = 0; i < 7; i++)
{
strcat(LEARNFINAL, LEARN);// append/concatenate LEARN 7 times to LEARNFINAL
}
for (i = 0; i < sizeof(LEARNFINAL); i++)
{
Send_Hex_Digit(DATA_PIN, LEARNFINAL[i], pulse);//send finished LEARNFINAL var
}
//PORTB &= ~(1 << DATA_PIN);//write low
}
break;
case ALARMSEND:
{
state = ALARMTIMEOUT;//set state
char ALARMFINAL[168];//make ALARMFINAL var and define length
strcpy(ALARMFINAL, ALARM);//copy ALARM to new ALARMFINAL var
for (uint8_t i = 0; i < 7; i++)
{
strcat(ALARMFINAL, ALARM);// append/concatenate ALARM 7 times to ALARMFINAL
}
for (i = 0; i < sizeof(ALARMFINAL); i++)
{
Send_Hex_Digit(DATA_PIN, ALARMFINAL[i], pulse);//send finished ALARMFINAL var
}
//PORTB &= ~(1 << DATA_PIN);//write low
}
break;
case HEARTBEATSEND:
{
state = CHECKING;//change state
char HEARTBEATPREFINAL[160];//make HEARTBEATPREFINAL var and define length
strcpy(HEARTBEATPREFINAL, HEARTBEAT);//copy HEARTBEAT to new HEARTBEATPREFINAL var
for (uint8_t i = 0; i < 7; i++)
{
strcat(HEARTBEATPREFINAL, HEARTBEAT);// append/concatenate HEARTBEAT 7 times to HEARTBEATPREFINAL
}
for (i = 0; i < sizeof(HEARTBEATPREFINAL); i++)
{
Send_Hex_Digit(DATA_PIN, HEARTBEATPREFINAL[i], pulse);//send finished HEARTBEATPREFINAL var
}
}
break;
case HEARTBEATTIMEOUT:
state = CHECKING;//change state
if ((Mill - Delay_Start_Heartbeat) >= DELAY_TIME_ZONE_HEARTBEAT)
{
Delay_Start_Heartbeat += DELAY_TIME_ZONE_HEARTBEAT;//prevents drift
state = HEARTBEATSEND;//change state when time ends
}
break;
case ALARMTIMEOUT:
state = ALARMTIMEOUT;//change state
if ((Mill - Delay_Start_Check_Alarm) >= DELAY_TIME_CHECKALARM_TIMEOUT)
{
state = CHECKING;//change state when time ends
}
break;
case LEARNTIMEOUT:
state = LEARNTIMEOUT;//change state
if ((Mill - Delay_Start_Learn) >= DELAY_TIME_CHECKLEARN_TIMEOUT)
{
state = CHECKING;//change state when time ends
}
break;
default:
//do nothing
break;
}
}
void Send_Hex_Digit(uint8_t pin, char c, uint16_t pulse)
{
byte bc = c - 48 ; // convert c to number 0 to 15
for (int i = 3; i >= 0; i--)
{
bitWrite(PORTB, pin, bitRead(bc, i));
delayMicroseconds(pulse);
}
}
void loop()
{
Check_Alarm_And_Heartbeat();
}
