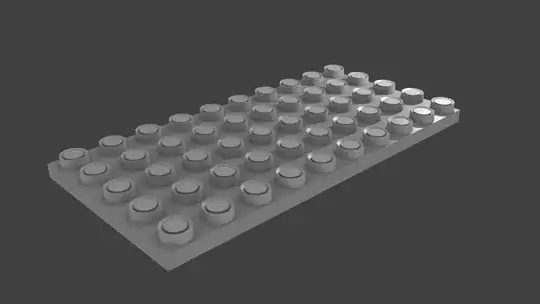

I want to create a microphone array like in the image below...

How can I do it for a raspberry device ?

I want the input to be stored for a few seconds on the sd card, and not to have a live stream, if live stream is possible, that would even be better....

would I need a multiplexer, if so, how many ones?

enter image description here

DeyaEldeen
  • 141
  • 5

1 Answers1

2

Question

  1. How to connect Rpi to 50 microphones?

  2. How to store a few seconds of analog audio signal on the SD card?

  3. Need a multiplexer? if so, how many?

Short Answer

  1. A quick and dirty hobbyist DIY wiring is to connect the 50 microphones to a structured/layered multiplexer/dimultiplexer of analog switches.

  2. You can use an Analog To Digital (ADC) chip/module to convert the few seconds of analog signals to a long string/array of digital values, and stored it in SD card.

  3. You can use any analog multiplexor/demultiplexor such as HC4351.

Long Answer

/ to continue, ...

References

MCP3008 SPI 8 Channel 10 bit ADC

CD74HC4051-EP Analog Multiplexer and Demultiplexer [Supports Defense and Aerospace Applications] - Texas Instruments

MC74HC4351 Analog Multiplexers/Demultiplexers with Address Latch using High−Performance Silicon−Gate CMOS [Obsolete version, to replace by newer version] - On Semiconductor/Fairchild Semiconductor

Appendices

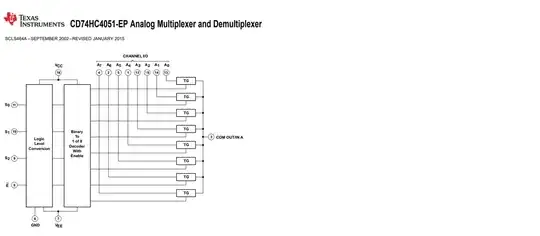

Appendix A - Analog Mux/Demux Block Diagram

analog mux block diagram

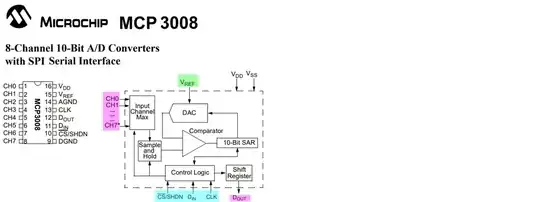

Appendix B- 8 Channel ADC Block Diagram

mcp3008 block diagram

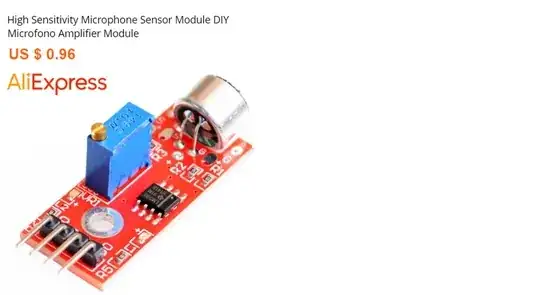

Appendix C - Mini Microphone and Power Amplifier

mike and amp
