I have a Raspberry Pi 3 Model B+. I am currently installing the Pi into a Super Tinytendo case, which came with a built-in mini fan. However, I'm not sure which set of pins I should plug the fan into.

According to the specs, the mini fan is 5 volts. It has two pin holes with red and black cables.

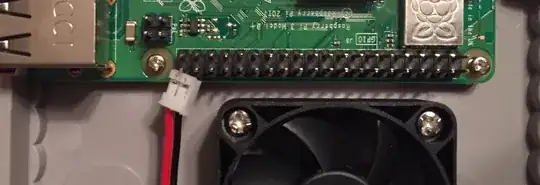

Raspberry Pi 3 Model B+ with a disconnected 2 pin fan

Where do I plug in a 5 volt mini fan on a Raspberry Pi 3 Model B+?

Stevoisiak
  • 321
  • 3
  • 5
  • 21

3 Answers3

6

If your fan is a 5v fan you need 5v (or 3v for slow spinning) and ground pins. If your fan is a 3v fan DO NOT use the 5v pin: use 3v instead.

Raspberry pi has an utility called pinout which tells you the phisical layout of your board. Just open a shell and run:

pinout

The output will be something like:

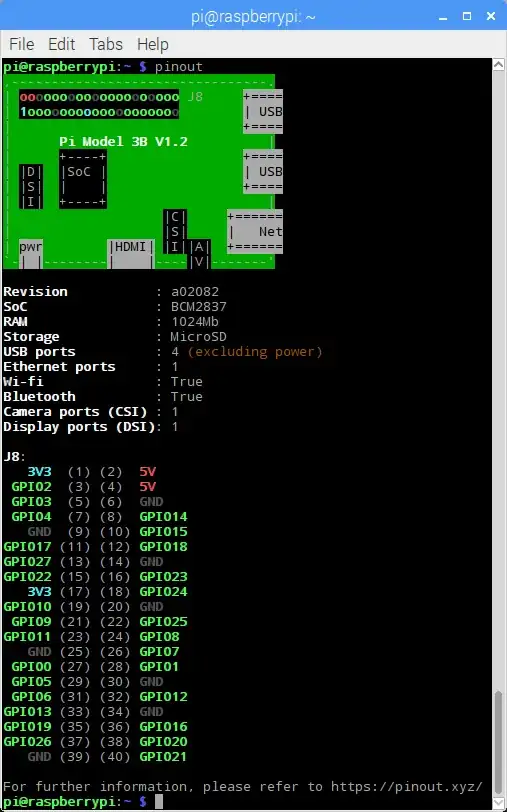

pinout output

If you prefer to trust documentation, this is the layout the documentation states:

Left side first or second pin for 5v and third for ground. I won't give numbers since they vary depending the schema you follow, so I think providing images is better.

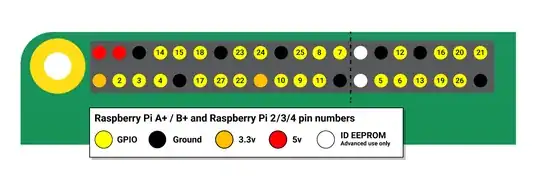

Images: Diagram

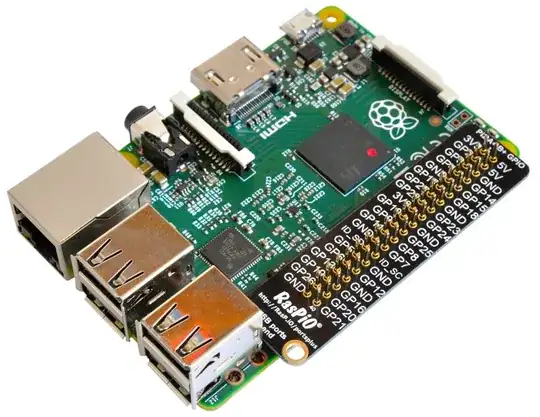

Raspberry Pi photo

source: Raspberry Pi GPIO Doc

DGoiko
  • 161
  • 1
  • 3
3

GPIO pins 4 (+5v) and 6 (GND). I peeled back the two leads from a GPIO-to-breadboard ribbon cable and soldered to two female-ended breadboard cable leads and connected them to the GPIO pins.

Pi 3B/Ubuntu Ma'te desktop.

Farad'n
  • 127
  • 1
  • 11
1

soldering leads from the usb power worked best for me allowing the fan to stop when Pi is halted then using gpio3 to wake..

Pi user
  • 11
  • 1
