As shown in this question, for the Raspberry Pi model B, in order to measure the voltage you just connect a multimeter to the TP1 and 2 pads. How is this done on the Raspberry Pi model B+ and 2 which are not labeled?

Community
  • 1
NULL
  • 2,240
  • 8
  • 28
  • 49

1 Answers1

4

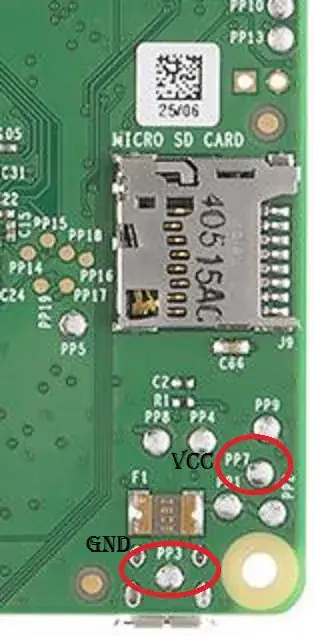

Although not as conveniently this can also be done on the raspberry pi B+ and 2 by connecting the Vcc (red lead) of the multimeter to PP7 on the bottom of the board and Gnd (black lead) to PP3.

enter image description here
