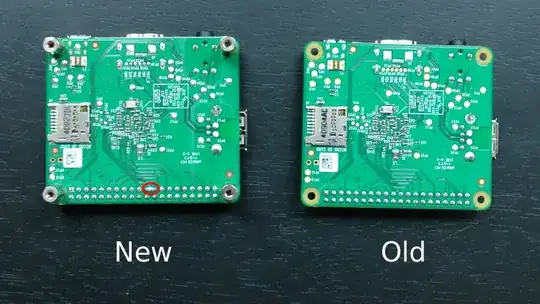

I just bought a new Model A+ board, and noticed that the GPIO pins 13 and 14 (board pins 21 and 23) are soldered together on the backside. This was not the case with my previous A+ board: see the two compared side-by-side below.

  1. Is this an error in the board, or the intended configuration?
  2. If this is an error, should I remove the solder before using the board (even if I don't intend to use these pins)?

New vs old board

Ted Pudlik
  • 243
  • 1
  • 6

2 Answers2

13

No they should not be soldered together (this is called a solder bridge). You should initiate a return request. You could cut or rework the trace yourself, but I would still suggest returning it - if you have problems down the road you may not be able to successfully return it if you cut the bridge yourself..

Steve Robillard
  • 34,988
  • 18
  • 106
  • 110
1

They shouldn't be soldered together, try returning it and DO NOT use it during the time as something could happen.
