9 Data Bits on UART pins?

Question

I am wondering if it is possible to send 9 data bits framed with a start/stop bit at 1.25MBaud.

I am currently using PySerial to configure the UART pins on the pi. I've stumbled across a few problems.

Pyserial requires you to send in ascii to the port, which is 7 bits, however can be converted into a byte with a leading serial using bytes(data.encode("ascii")

Pyserial does not seem to like 1.25MBaud

Any advice to maximize speed and configurability of the UART pins would be appreciated!

score 3 · Answer 1 · answered Dec 03 '14 at 11:03

The serial driver (see stty, man stty) only supports 5-8 data bits.

The nearest standard serial speed is 230400.

You can get 1.25 Mbps by using the init_uart_clock setting in /boot/config.txt (set it to 16 times the maximum value you want to use, i.e. init_uart_clock=20000000). stty will then let you select 1250000 bps.

I'm not aware of a practical solution for the 9 data bits. I've read of people trying to use the parity bit as an extra data bit.

score 2 · Answer 2 · edited Dec 17 '18 at 19:02

I have experimented and have a sort of solution to sending 9-bit data at 1.25 Mbps.

It involves modifications to my pigpio library.

I've added a gpioWaveAddSerialX() function which extends the gpioWaveAddSerial() function to allow for setting the number of data bits. This function constructs a waveform representing the serial data to be transmitted.

This also required an update to the internal waveBitDelay() function to allow for a variable number of data bits.

The other needed change was to change the base clock from 1 MHz to 1.25 MHz by changing clkDivI = 50 * micros to clkDivI = 40 * micros in the internal initClock() function.

The manifest constant PI_WAVE_MAX_BAUD in pigpio.h was changed to 1000000.

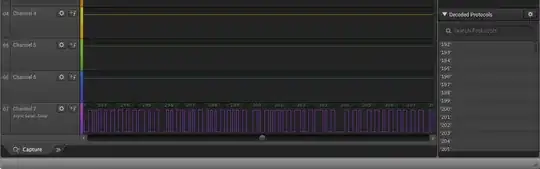

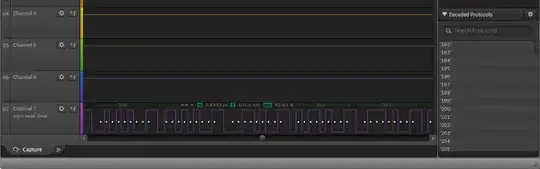

9-bit data 1.25 Mbps overview 9-bit data 1.25 Mbps detail

waveBitDelay

static void waveBitDelay(unsigned baud, unsigned bits, unsigned *bitDelay)
{
   unsigned fullBit, halfBit, s, e, d, m, i, err, t;

   /* scaled 100X */

   fullBit = 100000000 / baud;
   halfBit =  50000000 / baud;

   d = (fullBit/200)*200;

   s = 0;

   e = d;

   t = d/100;
   bitDelay[0] = t ? t : 1;

   err = d / 3;

   for (i=0; i<bits; i++)
   {
      s = e;

      m = halfBit + (i+1)*fullBit;

      e = s + d;

      if ((e-m) < err) e+=200;

      t = (e-s)/100;
      bitDelay[i+1] = t ? t : 1;
   }

   s = e;

   e = ((100*(bits+2)*1000000 / baud)+100)/200*200;

   t = (e-s)/100;
   bitDelay[bits+1] = t ? t : 1;
}

gpioWaveAddSerialX

int gpioWaveAddSerialX
   (unsigned gpio,
    unsigned bbBaud,
    unsigned bbBits,
    unsigned offset,
    unsigned numChar,
    char     *bstr)
{
   int i, b, p, lev, c, v;

   uint16_t *wstr = bstr;

   unsigned bitDelay[17];

   DBG(DBG_USER,
      "gpio=%d baud=%d bits=%d offset=%d numChar=%d str=[%s]",
      gpio, bbBaud, bbBits, offset, numChar, myBuf2Str(numChar,
      (char *)bstr));

   CHECK_INITED;

   if (gpio > PI_MAX_USER_GPIO)
      SOFT_ERROR(PI_BAD_USER_GPIO, "bad gpio (%d)", gpio);

   if ((bbBaud < PI_WAVE_MIN_BAUD) || (bbBaud > PI_WAVE_MAX_BAUD))
      SOFT_ERROR(PI_BAD_WAVE_BAUD,
         "gpio %d, bad baud rate (%d)", gpio, bbBaud);

   if (numChar > PI_WAVE_MAX_CHARS)
      SOFT_ERROR(PI_TOO_MANY_CHARS, "too many chars (%d)", numChar);

   if (offset > PI_WAVE_MAX_MICROS)
      SOFT_ERROR(PI_BAD_SER_OFFSET, "offset too large (%d)", offset);

   if (bbBits > 8) numChar /= 2;

   if (!numChar) return 0;

   waveBitDelay(bbBaud, bbBits, bitDelay);

   for (i=0; i<=bbBits+1; i++) DBG(0, "bit%d delay=%d", i, bitDelay[0]);

   p = 0;

   wf[2][p].gpioOn  = (1<<gpio);
   wf[2][p].gpioOff = 0;
   wf[2][p].flags   = 0;

   if (offset > bitDelay[0]) wf[2][p].usDelay = offset;
   else                      wf[2][p].usDelay = bitDelay[0];

   for (i=0; i<numChar; i++)
   {
      p++;

      /* start bit */

      wf[2][p].gpioOn = 0;
      wf[2][p].gpioOff = (1<<gpio);
      wf[2][p].usDelay = bitDelay[0];
      wf[2][p].flags   = 0;

      lev = 0;

      if (bbBits < 9)
         c = bstr[i];
      else
         c = wstr[i];

      DBG(0, "i=%d c=%x", i , c);

      for (b=0; b<bbBits; b++)
      {
         if (c & (1<<b)) v=1; else v=0;

         if (v == lev) wf[2][p].usDelay += bitDelay[b+1];
         else
         {
            p++;

            lev = v;

            if (lev)
            {
               wf[2][p].gpioOn  = (1<<gpio);
               wf[2][p].gpioOff = 0;
               wf[2][p].flags   = 0;
            }
            else
            {
               wf[2][p].gpioOn  = 0;
               wf[2][p].gpioOff = (1<<gpio);
               wf[2][p].flags   = 0;
            }

            wf[2][p].usDelay = bitDelay[b+1];
         }
      }

      /* stop bit */

      if (lev) wf[2][p].usDelay += bitDelay[9];
      else
      {
         p++;

         wf[2][p].gpioOn  = (1<<gpio);
         wf[2][p].gpioOff = 0;
         wf[2][p].usDelay = bitDelay[9];
         wf[2][p].flags   = 0;
      }
   }

   p++;

   wf[2][p].gpioOn  = (1<<gpio);
   wf[2][p].gpioOff = 0;
   wf[2][p].usDelay = bitDelay[0];
   wf[2][p].flags   = 0;

   return rawWaveAddGeneric(p, wf[2]);
}

Test program.

#include <stdio.h>
#include <stdint.h>

#include <pigpio.h>

#define GPIO 14

int main(int argc, char *argv[])
{
   uint16_t buf[1024];
   int i, wid;

   if (gpioInitialise() < 0) return 1;

   gpioSetMode(GPIO, PI_OUTPUT);

   for (i=0; i<600; i++) buf[i] = i;

   gpioWaveAddSerialX(GPIO, 1000000, 9, 2, 0, 1200, (char*)buf);

   wid = gpioWaveCreate();

   if (wid >= 0)
   {
      printf("ready recorder, then return\n");

      getchar();

      if (wid >= 0) gpioWaveTxSend(wid, 0);

      printf("stop recorder, then return\n");

      getchar();
   }
   else printf("error %d\n", wid);

   gpioTerminate();
}
