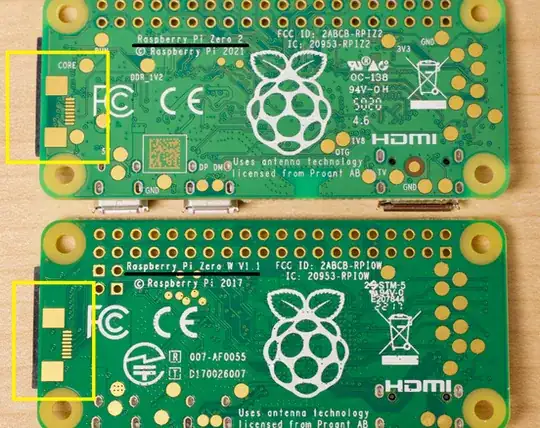

I was playing with my RP Zero 2w and notice that it has some pads (check image, over yellow rectangles) for soldering some kind of connector like usb-c / Display Port/ HDMI or others. It has 2 big pads for ground (maybe for mounting the shield of the connector) and 8 small pads for the pins. Quickly I started my google search. This pads are also on my Zero W

Pads for adding a connector

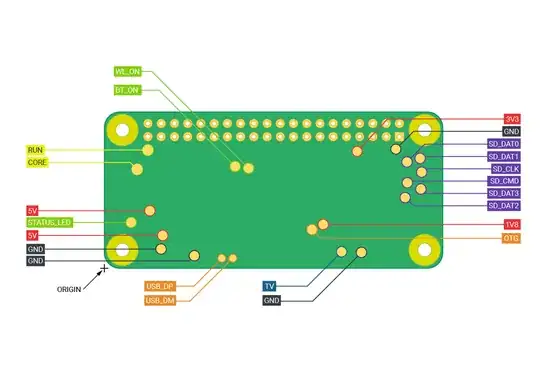

My search has returned only this pad map:

Map of pads

Where the desired zone is not covered. Does someone knowns what is theusage of those pads? What can I solder there?

luisfelipe18
  • 161
  • 5

1 Answers1

3

After a long search, this seems to be Videocore JTAG connector, used for debug operations on production.

source here
