I have 8 adafruit_hcsr04 range finders wired in the exact same way to a Raspberry Pi 4 but only 4 of them work and I'm at a loss.
I've verified with an ohmmeter the echo and trigger pins are physically connected to the correct GPIO Pins, swapped out the sensor to make sure it was working. The code is very simple and works on other sensors:
sonar_1 = adafruit_hcsr04.HCSR04(trigger_pin=board.D14, echo_pin=board.D15) # ok
sonar_2 = adafruit_hcsr04.HCSR04(trigger_pin=board.D8, echo_pin=board.D0) # ok
sonar_3 = adafruit_hcsr04.HCSR04(trigger_pin=board.D22, echo_pin=board.D13) # pin 15 / pin 33 does not work
sonar_4 = adafruit_hcsr04.HCSR04(trigger_pin=board.D4, echo_pin=board.D11) # ok
BCM Pin 22 and 13 are normal GPIO pins so i don't understand why it wouldn't work while others do.
These are your standard Distance Sensor https://www.adafruit.com/product/4007

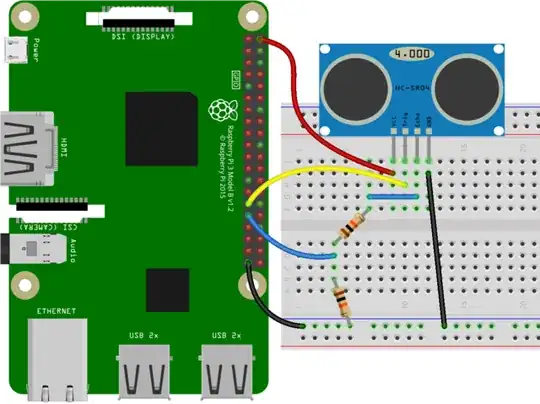

Wired just like this but to pin 22 and 13 (physical pin #15 and #33)
I'm about to reformat the SD Card thinking some setting is using these pins but any advice would be appreciated.
Below is my entire /boot.config.txt:
