I have Pi4 on a UPS and a 3.3 volt Arduino (Nano 33 IOT) supplied without a UPS protection.

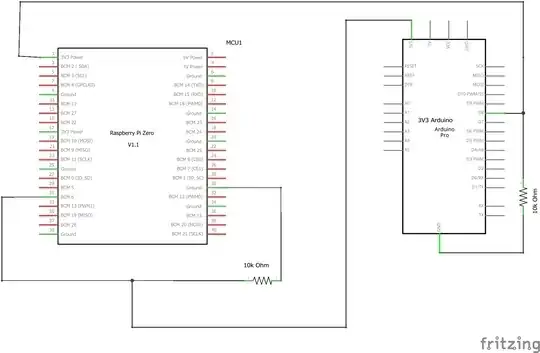

I am designing a system where Pi monitors a 3.3V Arduino pin to know if there is a power outage (and shut down orderly if needed). Upon power return, Arduino would detect if Pi is off (by monitoring the 3.3V Pi pin) and briefly open the Pi power supply circuit to reboot the Pi. The Arduino-Pi connections diagram is below.

Pi-Arduino connection

Is it safe to connect the a GPIO Pi pin directly to the Arduino's 3V3 pin, and vice versa as depicted in the schematic? Or should I have a 220 Ohm resistor between the Pi's GPIO and Arduino's 3V3 pin and between the Arduino's D and Pi's 3V3 pin?

EDIT based on the comments below:

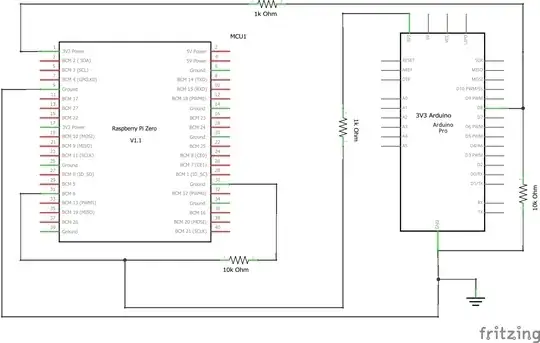

The proposed solution:

enter image description here

kb__
  • 43
  • 6

2 Answers2

1

First the diagram you listed will NOT WORK and risks damaging either or both devices.

If you want to directly connect devices they MUST use a common reference. This is normally the 0V pin/s (often incorrectly labelled Gnd).

It is "safe" to connect a 3.3V logic device to the Pi, and you could connect 3.3V power pins (although I would NOT do this).

If you want to connect I suggest you use a series resistor, although it is better practice to use a voltage divider (e.g. 1kΩ and 2.2kΩ). This avoids problems due to any differences in nominal 3.3V voltage.

Any voltage >2.2V will definitely be detected by both the Pi and 3.3V Arduino.

Milliways
  • 62,573
  • 32
  • 113
  • 225
1

Whatever you do yo must not connect things directly. Us a resistor between these power source connections. The Arduino will be ok. But the rpi will burn if anything goes wrong. Use the analog reading codes for both end to read the voltages.

Sohan Arafat
  • 1,852
  • 2
  • 12
  • 43
