High level of noise of SPI pins on RPi Zero W

Question

I have a zero W powered via USB from a laptop. I have setup up for the SPI drivers and run a very simple test program which is:

import spidev
import time
spi = spidev.SpiDev()
spi.open(0, 0)
spi.max_speed_hz = 500000
spi.mode = 0
try:
    while True:
        resp = spi.xfer2([0xAA])
        time.sleep(0.1)
except KeyboardInterrupt:
    spi.close()

I get the correct output but the waveforms are so noisy. Figure 1

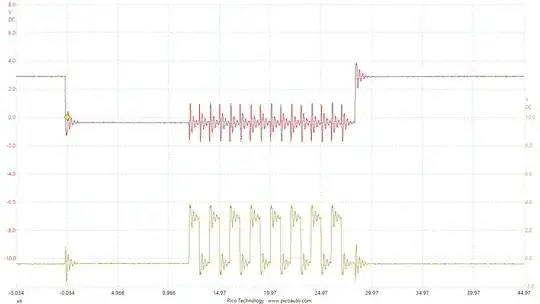

The yellow is the SCLK pin, the red is the CE0 pin

In figure 2:

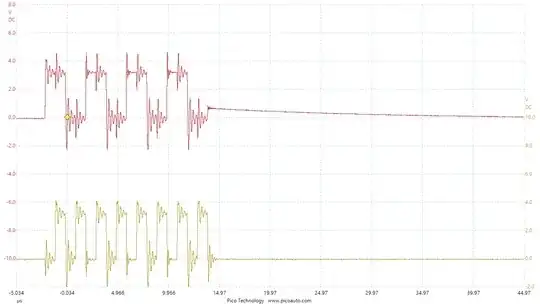

The yellow is the SCLK pin and the red is the MOSI outputting one byte of 0xAA
The voltages are between 0 and 3.3. I looked at this because I can not receive data by the slave, but there could be a hundred reasons for that. What I would like to know, is this noise level normal and could it affect the slave device.
Many thanks.

score 3 · Answer 1 · answered Sep 13 '19 at 13:45

These look like signals which have travelled along quite long wires with no termination, which were packed together. Using shorter wires and running SPI signals in a flat cable with GND lines in between signal lines will help. Adding a 30 Ohm series resistor on the CLK line (near the master pin which drives it) could be the next step.

Even then, your signals look acceptable and I wouldn't spend time on getting them super-clean as long as everything works, unless your ultimate plan is to run SPI at a much higher frequency. Your slave not receiving the data is almost certainly due to something else: noise would rather make it receive incorrect data.
