I ordered a ADS1115 so I could measure temperature of a type K thermocouple, but I am not managing to get accurate readings. I had it working while having a normal A0 pin, but since the type K table shows pretty low voltages, the 0-1023 scale is not accurate.

When the thermocouple is at room temperature (around 22°c), it shows 00.0 millivolts on the multimeter (which I dont understand since it does not match with the table), and my program outputs a value of around -40 and a voltage of -0.005. When I heat it up until I measure 10.0 millivolts (around 250°c according table), the Arduino prints a value of 53 and a millivolts of 300.

What am I doing wrong? I suspect something with the calculation, but I am not able to find out how I should do it, I know very little about millivolts.

Can someone help me out what I am doing wrong here and what I should do?

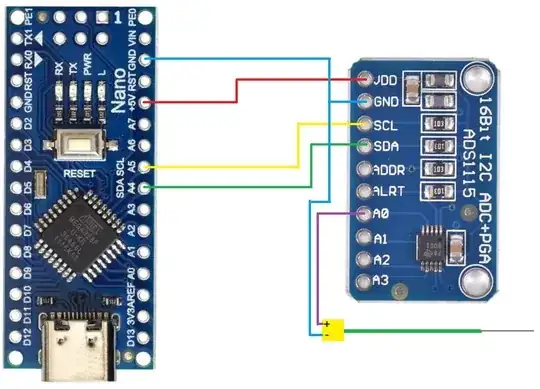

I have the thermocouple and ADS1115 connected as shown in the image below. wiring

The code I am using is as following

#include <Adafruit_ADS1X15.h>

const int analogFruitPin = 0;


Adafruit_ADS1115 ads;


void setup()
{
  Serial.begin(9600);
  ads.begin();
  ads.setGain(GAIN_FOUR);
  ads.setDataRate(RATE_ADS1115_860SPS);
}


void loop()
{
  int sensorValue = ads.readADC_SingleEnded(analogFruitPin);
  float voltage = sensorValue * (5.0 / 32768.0);
  Serial.println(voltage,3);
  Serial.println(sensorValue);
  delay(500);
}
Rohit Gupta
  • 618
  • 2
  • 5
  • 18
Bart
  • 123
  • 2

2 Answers2

0

Welcome! Interesting but expected. Thermocouples need what is called a cold junction compensation. That is a circuit or another thermonuclear that compensates for the thermocouple effect where the lead wires are connected to your measuring device. These thermocouple lead wires should be the same metallic material as the wires in the thermocouple. The metals are different where you connect to the measuring device and will generate a voltage as the temperature changes regardless of the sensing probe, that is how the thermocouple works. This link will help: https://www.tegam.com/what-exactly-is-cold-junction-compensation/

For more information check this link: https://randomnerdtutorials.com/arduino-k-type-thermocouple-max6675/

Gil
  • 1,863
  • 9
  • 17
0

To simplify your thermocouple temperature sensor project, consider using an ADC which also contains a cold junction temperature sensor. This product from Adafuit.com integrates both into one package by using a Microchip.com MCP9601 integrated circuit.

In short, thermocouples generate small amounts of voltage where dissimilar metals touch. This is true where the thermocouple wires are touching each other. And is also true where the thermocuple wires are touching the metal connecting them to the ADC circuit (commonly called the "cold junction"). To find the temperature where the thermocouple wires are touching we need to subtract the effects of the "cold junction". To do that, we need to first know the temperature of the "cold junction". We commonly do this with a second temperature sensor as it is a more practical (and portable) solution than a traditional zero centigrade ice bath (likely where the term "cold junction" came from).
