I have a rotary encoder (ppr = 600) and I want to write code to achieve the implementation to read current angle and direction.

Here is my code. I think it is correct but it donot have any output on the serial monitor.

#include <Servo.h>

// Rotary Encoder Connections int encoderPinA = 2; // Connect the CLK pin of the encoder to digital pin 2 int encoderPinB = 3; // Connect the DT pin of the encoder to digital pin 3

// Variables volatile int encoderPos = 0; // Current position of the encoder volatile int lastEncoderPos = 0; // Previous position of the encoder int clockwiseSteps = 0; // Total clockwise steps turned int counterclockwiseSteps = 0; // Total counterclockwise steps turned int latestOperation = 0; // Latest rotation operation (1 for clockwise, -1 for counterclockwise) int degreesPerStep = 360 / 600; // Degrees per step for a 600-pulse rotary encoder int aLastState = digitalRead(encoderPinA); // Default state of Pin A

void setup() { // Set encoder pins as inputs pinMode(encoderPinA, INPUT_PULLUP); pinMode(encoderPinB, INPUT_PULLUP);

// Attach interrupts to the encoder pins
attachInterrupt(digitalPinToInterrupt(encoderPinA), updateEncoder, CHANGE);
attachInterrupt(digitalPinToInterrupt(encoderPinB), updateEncoder, CHANGE);

// Initialize Serial communication
Serial.begin(9600);

}

void loop() { // Print the total degrees turned in both directions if (encoderPos != lastEncoderPos) { int rotation = encoderPos - lastEncoderPos; if (rotation > 0) { clockwiseSteps += rotation; latestOperation = 1; } else { counterclockwiseSteps += rotation; latestOperation = -1; } lastEncoderPos = encoderPos;

    int currentAngle;
    if (latestOperation == 1) {
        currentAngle = (clockwiseSteps - counterclockwiseSteps) * degreesPerStep;
        Serial.print(&quot;CW | &quot;);
    } else {
        currentAngle = (clockwiseSteps - counterclockwiseSteps) * degreesPerStep;
        Serial.print(&quot;CCW | &quot;);
    }
    Serial.println(currentAngle);
}

}

void updateEncoder() { int aState = digitalRead(encoderPinA); // Reads the "current" state of the outputA // If the previous and the current state of the outputA are different, that means a Pulse has occured if (aState != aLastState){
// If the outputB state is different to the outputA state, that means the encoder is rotating clockwise if (digitalRead(encoderPinB) != aState) { encoderPos++; } else { encoderPos--; } } aLastState = aState; // Updates the previous state of the outputA with the current state }

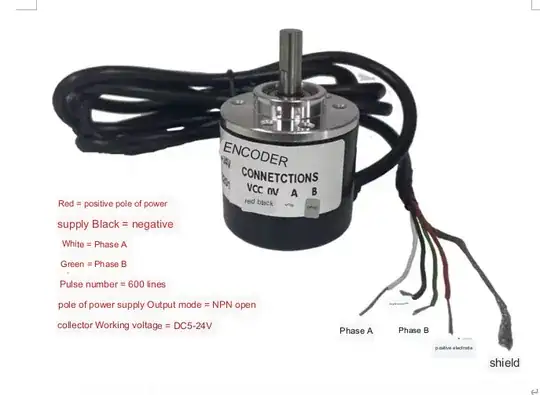

Why there is no output? Seem like the interrupt function not working. How to fix it? enter image description here

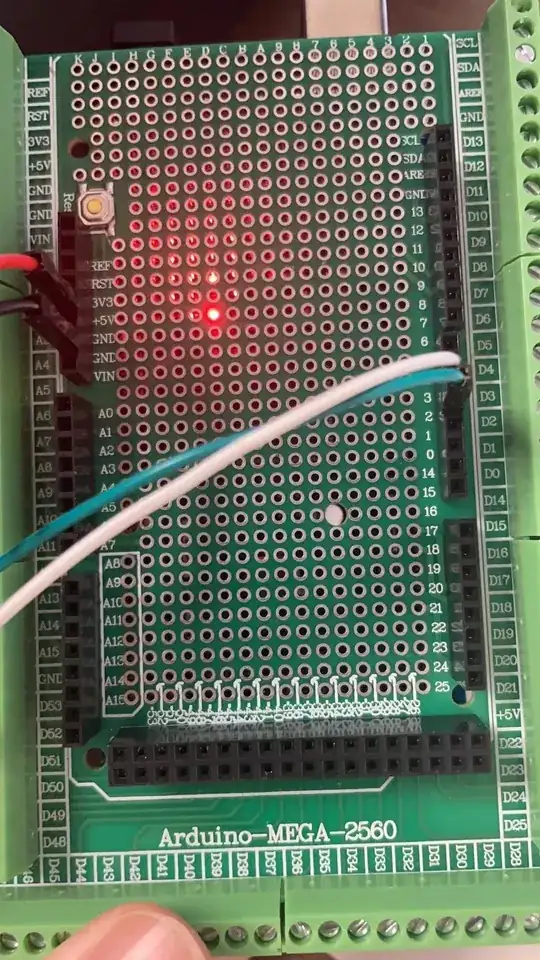

enter image description here
