I'm try to read some value from a soil NPK sensor using RS485 Modbus e Arduino uno.

I menage to sent the request msg and I got the response but now i don't know how to read the response in order to get the information I need.

the following code sent the request to get moisture value to the sensor:

#include <SoftwareSerial.h>

#define RE 8 #define DE 7

const byte msg[] = {0x01,0x03, 0x00, 0x00, 0x00, 0x01, 0x84, 0x0A}; byte values[11];

SoftwareSerial mod(2, 3);

void setup() {

Serial.begin(4800);

mod.begin(4800);

pinMode(RE, OUTPUT); pinMode(DE, OUTPUT);

delay(500); }

void loop() { test();

}

byte test(){ digitalWrite(DE,HIGH); digitalWrite(RE,HIGH); delay(10); Serial.flush();

if(mod.write(msg,sizeof(msg))==8){ digitalWrite(DE,LOW); digitalWrite(RE,LOW);

for(byte i=0;i&lt;7;i++){
 values[i] = mod.read();
Serial.print(values[i],HEX);



}

Serial.println();
Serial.flush();
delay(4000);


}

}

My response is following bits:

114BA4134
1D5112A671
341D2119B
A61341D51
12A671341
E811BBAB13
41DB114BA4
1341DB11
4BA41341DB
114BA4134
1E311CA691
341C911EB
A11341E31
1CA691341
EC11FA6A13
41E4117BA8

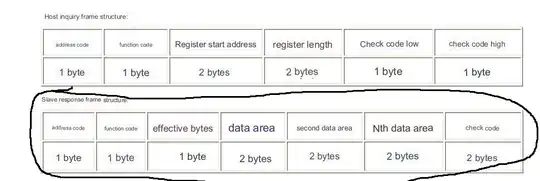

looking at the datasheet below there should be a data area in the message response from the sensor.

how to convert this bit info to my humidty value.

pic

my be this example from the datasheet can help

pic 2
