I am going to use 4x TPIC6B595 and 4x 7 segment display with common anode. Below You Can find vendor site of this display. https://sklep.avt.pl/wyswietlacz-led-2-30-57mm-zielony-wa.html

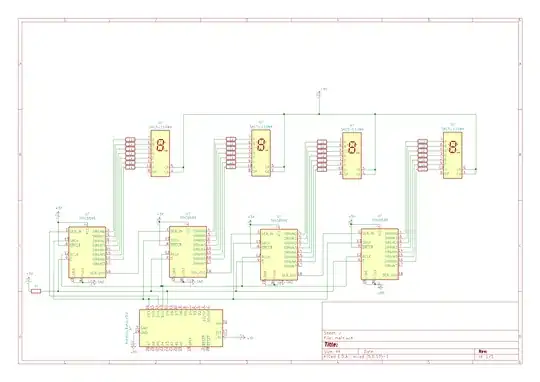

Here is my diagram: diagram

I want to display 4 digit number. Will it work? Or do i need also MIC2981 chip to supply more current?

I didn't use shift registers like TPIC before. Could You show me a basic code to make display show 4 digit number?

Thanks in advance.
