I'm trying to connect a modbus meter to a nodeMcu LoLin v3

I'm using a MAX3485 module to transfer the TTL to a RS485 connection. The modbus server has unitId 1, baud rate 9600 and no Parity

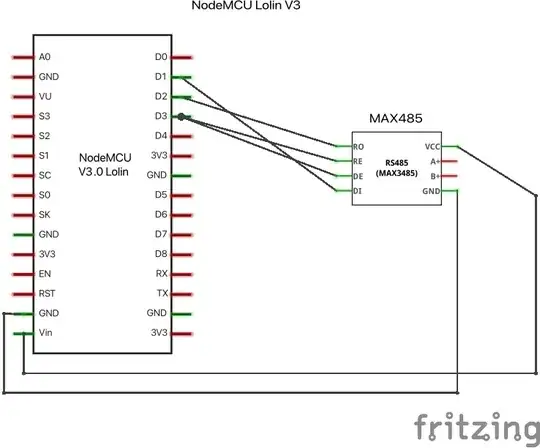

This is the scheme. A e B from the module go to the modbus server device Connection

And this is my simple script

#define DIRECTION D3

#include <ModbusRTU.h> #include <SoftwareSerial.h>

SoftwareSerial S(D2, D1); ModbusRTU mb;

bool cb(Modbus::ResultCode event, uint16_t transactionId, void* data) { // Callback to monitor errors if (event != Modbus::EX_SUCCESS) { Serial.print("Error result: 0x"); Serial.println(event, HEX);

} else { Serial.print("No Error"); } return true; }

void setup() { Serial.begin(115200); pinMode(DIRECTION, OUTPUT); digitalWrite(DIRECTION, 0); S.begin(9600, SWSERIAL_8N1);

mb.begin(&S);

mb.client(); }

void loop() { uint16_t res[2];

if (!mb.slave()) { // Check if no transaction in progress mb.readHreg(1, 5, res, 1, cb); // Send Read Hreg from Modbus Server while (mb.slave()) { // Check if transaction is active mb.task(); delay(10);

}
Serial.println(&quot;Res&quot;);
Serial.println(res[0]);
Serial.println(res[1]);

} delay(1000); }

I created a Software Serial on D1 and D2 and i'm trying to read from it but no matter what i do, i keep getting error 4 from the response and 2 values in my reg array i do not where they come from...

Error result: 0xE4
Res
59044
16382

Am I missing something? The modbus server works because i connected it to another client and everything is ok
