Like subject all ready telling you, I blew up my 3th Nano every.

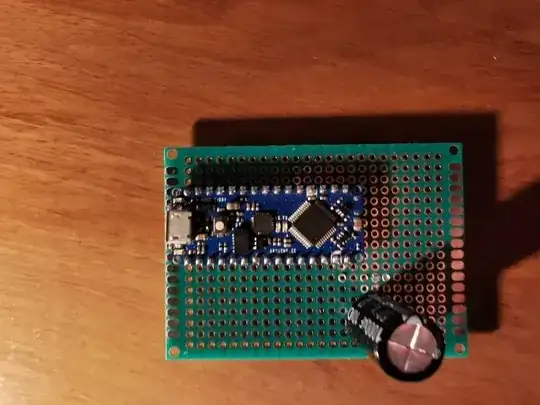

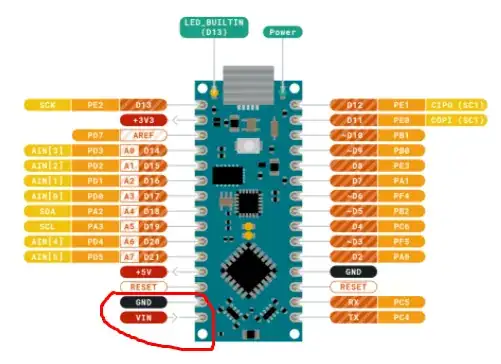

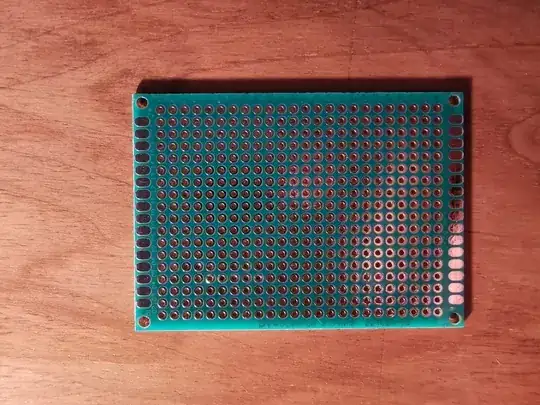

I mounted them on a perf board, soldered with 99% tin 1.0mm and a Flux, cleaned with flux remover, etc... When I then power them up through USB I have a short on pin 29 and 30 (Vin Gnd). And the board is ready to go directly in the poubelle (the garbage thing).

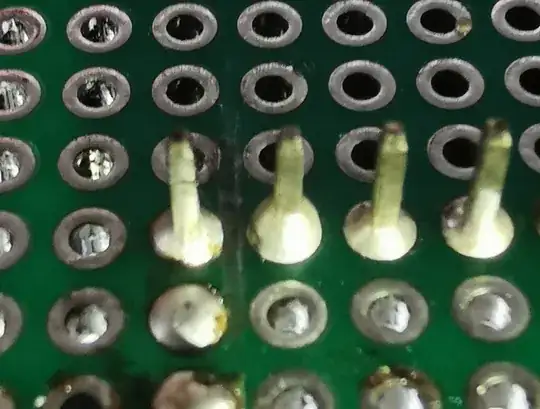

Second and third time, after soldering I scratched the space between both pins to make sure there is no connection. But... Yip again. Is this a common issue? Am I overseeing something?

Did my measurements with multimeter. No shorts.

pins

board

layout

pinout

Joeri VA
  • 49
  • 2

1 Answers1

2

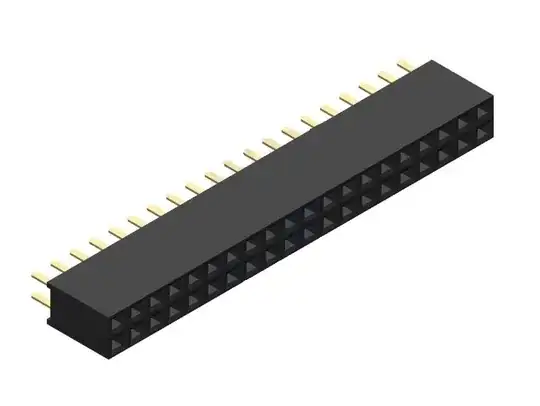

If i am not wrong you have soldered nano directly to the perf board, which i don't recommend at all. You could try soldering a female strip pin on to the pref board and insert the nano board in the strip pin. This way you could easily remove/install the board easily as you wish. enter image description here
