So I am trying to put together a code for 4dc motors, buzzer, ultrasonic and lcd to work together,. they will together make up a small car. when the distance to the ultrasonic is smaller than 10cm, the buzzer makes a random sound, and a funny face. Meanwhile the motors will stop for 2 seconds, goes back for 2 seconds and do a turning motion for 8 seconds. However. I do not want to use the delay function for the motors since it will cause the buzzer to sound too slowly. I know I need to do a blink without delay code, I am trying to implement this but am having trouble right now: the motors will stop when I put in the motor stop function, but it will not go backwards.. I know there are some timing issues but how can I fix this? please see attached the code and wiring diagram.

Thank you sooo much !!!!

#include <LiquidCrystal.h>
#include <NewTone.h>

#include<AFMotor.h> #define trigPin A1 #define echoPin A0

AF_DCMotor motor1(1,MOTOR34_1KHZ); AF_DCMotor motor2(2,MOTOR34_1KHZ); AF_DCMotor motor3(3,MOTOR34_1KHZ); AF_DCMotor motor4(4,MOTOR34_1KHZ);

LiquidCrystal lcd(8, 9, 4, 7, 12, 13);

int buzzerPin = A2; int notes[] = {262}; int dur = 100; int maximum = 100; long duration; int distance; int distanceUltra; unsigned long previousBuzzerMillis = 0; unsigned long previousDCStopMillis = 0; unsigned long previousDCBackMillis = 0; unsigned long currentMillis = 0; const unsigned long DCStopInterval =2000; const unsigned long DCBackInterval =2000;

byte a[]={ B10001, B10001, B10101, B10101, B01010, B00000, B00000, B00000 };

byte b[]={ B00000, B00010, B00100, B01000, B01000, B01000, B01000, B01000 };

byte c[]={ B00000, B01000, B01000, B01000, B01000, B01000, B00100, B00010 };

byte h[]={ B00000, B01000, B00100, B00010, B00010, B00010, B00010, B00010 };

void setup() {

Serial.begin(9600); lcd.begin(16,2); pinMode (trigPin, OUTPUT); pinMode (echoPin, INPUT); lcd.createChar(0,a); lcd.createChar(1,b); lcd.createChar(2,h); lcd.createChar(3,c);

pinMode(buzzerPin, OUTPUT); }

void loop() {

currentMillis = millis(); digitalWrite(trigPin, LOW); delayMicroseconds(2); digitalWrite(trigPin, HIGH); delayMicroseconds(10); digitalWrite(trigPin, LOW);

duration = pulseIn(echoPin, HIGH); distance = duration*0.034/2;

Serial.print("distance:"); Serial.println(distance);

lcd.clear(); currentMillis = millis();

if (distance <= 10){

stopDCMotorStop();
//stopDCMotorBack();


}

else{ motor1.setSpeed(100); motor1.run(BACKWARD); motor2.setSpeed(100); motor2.run(BACKWARD); motor3.setSpeed(100); motor3.run(BACKWARD); motor4.setSpeed(100); motor4.run(BACKWARD); }

if (distance <= 10){

lcd.setCursor(5,1);   //set lcd faces
lcd.write((char) 3);
lcd.setCursor(5,0);
lcd.write((char) 1);
lcd.setCursor(9,1);
lcd.write((char) 201);
lcd.setCursor(9,0);
lcd.write(2);
lcd.setCursor(6,0);
lcd.write(&quot;x&quot;);
lcd.setCursor(8,0);
lcd.write(&quot;x&quot;);
lcd.setCursor(7,1);
lcd.write(&quot;o&quot;);
}

if (distance &lt;= 10){
  randSound(maximum);
}

}

void randSound(int maximum){ NewTone(buzzerPin, random(maximum, 10*maximum),dur); delay(maximum); noNewTone(buzzerPin); }

void stopDCMotorStop(){

if (currentMillis-previousDCStopMillis<= DCStopInterval) { motor1.setSpeed(0); motor1.run(RELEASE); motor2.setSpeed(0); motor2.run(RELEASE); motor3.setSpeed(0); motor3.run(RELEASE); motor4.setSpeed(0); motor4.run(RELEASE); previousDCStopMillis =currentMillis; }

}

void stopDCMotorBack(){

if (currentMillis-previousDCBackMillis<= DCBackInterval) { motor1.setSpeed(100); motor1.run(FORWARD); motor2.setSpeed(100); motor2.run(FORWARD); motor3.setSpeed(100); motor3.run(FORWARD); motor4.setSpeed(100); motor4.run(FORWARD); previousDCBackMillis =currentMillis; } }

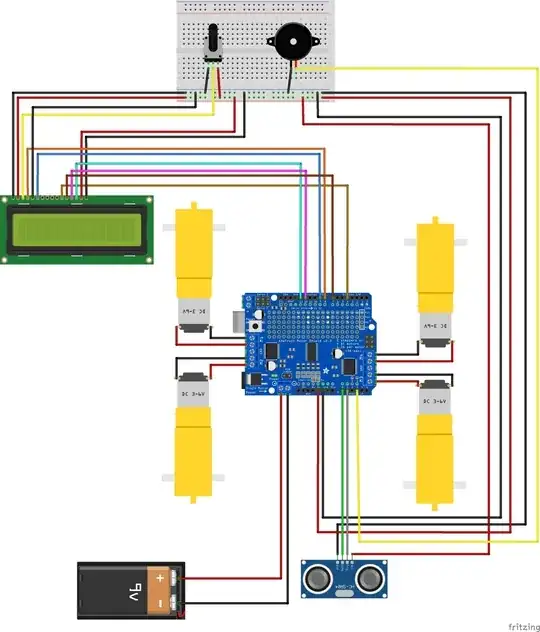

enter image description here
