I found a bunch of Arduinos (seemingly), but I can't identify the type.

I first thought of a Micro, but the chip is a MEGA328PAU and the Micro should have a MEGA32U4 instead:

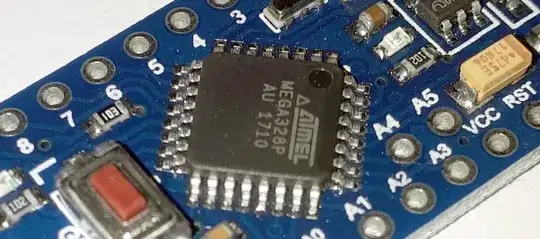

Chip of the unknown Arduino

I know it's also not a Nano, because the Nano is a bit longer:

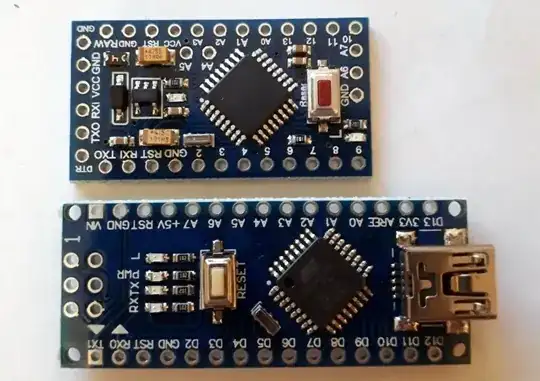

Comparison of unknown Arduino with Nano

Next, I looked up the List of Board Specs. Based on the chip, the following models remain:

  • Lilypad, can easily be excluded due to its shape
  • Lilypad SimpleSnap, can easily be excluded due to its shape
  • Uno, can easily be excluded due to its size
  • Ethernet, can easily be excluded, because of the Ethernet port
  • Mini
  • Pro
  • Pro Mini

So I am left with Mini, Pro Mini and Pro. The back of the board is not very helpful, since it IMHO misses the markers in the silk sceen:

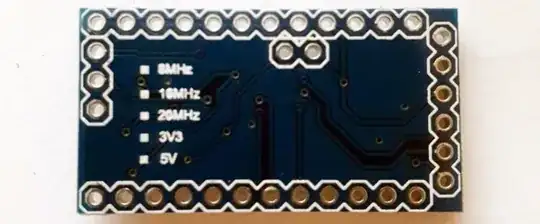

Back of the board

It definitely looks like the Pro Mini from Arduino Store, but the Arduino store seems not to offer the Mini and Pro, so I don't have a comparison.

What type of Arduino is this? And, if possible, do you have a visual comparison of the three remaining types?

Thomas Weller
  • 1,058
  • 1
  • 8
  • 22

1 Answers1

5

It is a version of Pro Mini. here in DIY MORE shop

The Mini has regulator. Power it over RAW pin with 7 to 12 V and measure the Vcc pin if it shows 5v or 3.3 V.

To determine the frequency, look at the resonator (the component next to pin 2).

EDIT: the resonator markings are hard to read and very cryptic. to determine the frequency you could install Sparkfun boards package. There you can select the different variants of Pro Mini. Upload Blink. If the upload is successful and it Blinks in 1 second intervals, you have the right setting.

Juraj
  • 18,264
  • 4
  • 31
  • 49
