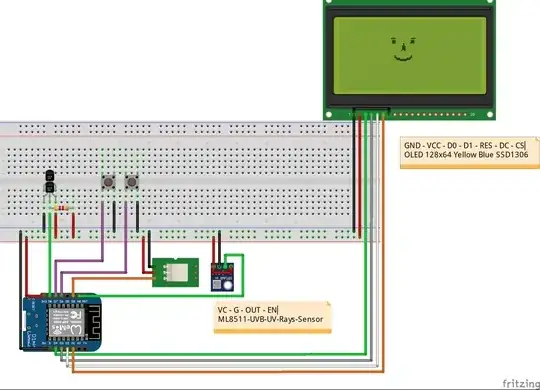

I'm close to finish my first DYI project. But a never seen issue on the breadboard has apprear as soon as assembled.
The LCD is always / totally blank/black.
When I remove the 4.7 K ohm pull-up resistor from my 2 temperature sensors 18b20 the LCD works like a charm but temperature sensor doens't work. If a reconnect the pull-up resistor when the LCD is OK the temperature is displayed.
So it could be a wrong initialisation in my code (maybe during last cleaning) Or a bad way to do this with my sensors and resistors.
I have theory but I'm quite a noob on electronic. What do you think I can do to resolve that ?
Thanks,
. . .
It's a LoLin card an not a Wemos.
#include <Arduino.h>
#include <math.h>
#include <TimeLib.h>
#include <ArduinoJson.h>
#include <ESP8266WiFi.h>
#include <ESP8266WiFiMulti.h>
#include <ESP8266HTTPClient.h>
#include <WiFiClient.h>
#define PIN_DZero D4 // LCD PIN D0
#define PIN_DOne D3 // LCD PIN D1
#define PIN_RESET D2 // LCD PIN RST
#define PIN_DC D1 // LCD PIN DC
#define PIN_TEMP D8 // TEMP PIN
#define PIN_BtnMoins D6 // Button -
#define PIN_BtnPlus D7 // Button +
#define PIN_RELAY D0 // RELAY PIN
#define PIN_UV A0 // UV ANALOG PIN
// Temperature sensor
#include <Wire.h>
#include <DallasTemperature.h>
OneWire oneWire(PIN_TEMP); // Setup a oneWire instance to communicate with any OneWire devices
DallasTemperature sensors(&oneWire); // Pass our oneWire reference to Dallas Temperature.
// LCD
#include <U8g2lib.h>
#include <U8x8lib.h>
U8G2_SSD1306_128X64_NONAME_F_4W_SW_SPI u8g2(U8G2_R0, PIN_DZero, PIN_DOne, U8X8_PIN_NONE, PIN_DC, PIN_RESET);
ESP8266WiFiMulti WiFiMulti;
/*-----SENSOR VALUES-----*/
float sensorUVvolt ;
float sensorUV ;
float sensorTemp0 ;
float sensorTemp1 ;
String macAddress = "";
String txtWebService = "";
String txtTime ;
String txtSunRise;
String txtSunSet ;
int utcTime ;
int utcSunRise;
int utcSunSet ;
long timeLast = -55000;
bool isInternetConnected = 0;
bool isLampOn = 0;
time_t timeNow = now();
int minuteSunRise = 0;
int minuteSunSet = 0;
bool previousBlink = 0;
int menu = 0;
bool freezeMenu = 0;
unsigned int paramMinuteTimeNow;
unsigned int paramMinuteSunRise;
unsigned int paramMinuteSunSet;
int paramLampMode = 0; // AUTO
void setup() {
Serial.begin(9600);
digitalWrite(PIN_RELAY, LOW);
pinMode(PIN_RELAY, OUTPUT);
digitalWrite(PIN_RELAY, LOW);
pinMode(PIN_BtnMoins, INPUT_PULLUP);
pinMode(PIN_BtnPlus, INPUT_PULLUP);
//pinMode(PIN_TEMP, INPUT_PULLUP);
txtTime = "1990-01-01 00:00:00";
setTime(txtTime.substring(11, 13).toInt(), txtTime.substring(14, 16).toInt(), txtTime.substring(17, 19).toInt(), txtTime.substring(8, 10).toInt(), txtTime.substring(5, 7).toInt(), txtTime.substring(0, 4).toInt()); // Another way to set
Serial.setDebugOutput(true);
Serial.println(".");
Serial.println(".");
Serial.println(".");
sensors.begin();
u8g2.begin();
WiFi.mode(WIFI_STA);
WiFiMulti.addAP("WIFINAME", "PASS");
macAddress = WiFi.macAddress();
}
void GetAllSensorValues() {
sensorUVvolt = 3.3 * analogRead(PIN_UV) / 1024; ; //*100/1024;
sensorUV = mapfloat(sensorUVvolt, 1.06, 2.9, 0.0, 15.0);
if (sensorUV <= 0 ) sensorUV =0;
sensors.requestTemperatures(); // Send the command to get temperature readings
sensorTemp0 = sensors.getTempCByIndex(0);
sensorTemp1 = sensors.getTempCByIndex(1);
if (sensorTemp0 <= 0 ) sensorTemp0 =0;
if (sensorTemp1 <= 0 ) sensorTemp1 =0;
}
void ActuorAll() {
if (paramLampMode == 3) {
digitalWrite(PIN_RELAY, HIGH);
} else if (paramLampMode == 2) {
digitalWrite(PIN_RELAY, LOW);
} else {
if ( minuteSunSet != minuteSunRise && minuteSunSet != 0 && minuteSunSet > minuteSunRise && year(timeNow) != 1982 && hour(timeNow) + minute(timeNow) !=0 ) {
if ( minuteSunRise + paramMinuteSunRise <= 60 * hour(timeNow) + minute(timeNow) + paramMinuteTimeNow && 60 * hour(timeNow) + minute(timeNow) + paramMinuteTimeNow <= minuteSunSet + paramMinuteSunSet ) {
isLampOn = 1;
digitalWrite(PIN_RELAY, HIGH);
} else {
isLampOn = 0;
digitalWrite(PIN_RELAY, LOW);
}
}
}
}
//The Arduino Map function but for floats
float mapfloat(float x, float in_min, float in_max, float out_min, float out_max)
{
return (x - in_min) * (out_max - out_min) / (in_max - in_min) + out_min;
}
void loop() {
boolean btnPlus = !digitalRead(PIN_BtnPlus);
boolean btnMoins = !digitalRead(PIN_BtnMoins);
if ( !freezeMenu && btnMoins==HIGH && btnPlus==HIGH ) {
if (menu >= 6) {
menu = 0;
freezeMenu = 1;
} else {
menu++;
freezeMenu = 1;
}
}
if ( btnMoins==LOW || btnPlus==LOW) {
freezeMenu = 0;
}
if (menu != 0) {
if (previousBlink) {
previousBlink = 0;
} else {
previousBlink = 1;
}
if (menu == 2 && btnMoins==HIGH) { paramMinuteTimeNow=paramMinuteTimeNow-10; }
if (menu == 2 && btnPlus==HIGH) { paramMinuteTimeNow=paramMinuteTimeNow+10; }
if (menu == 3 && btnMoins==HIGH) { paramLampMode--; }
if (menu == 3 && btnPlus==HIGH) { paramLampMode++; }
if (menu == 5 && btnMoins==HIGH) { paramMinuteSunRise=paramMinuteSunRise-10; }
if (menu == 5 && btnPlus==HIGH) { paramMinuteSunRise=paramMinuteSunRise+10; }
if (menu == 6 && btnMoins==HIGH) { paramMinuteSunSet=paramMinuteSunSet-10; }
if (menu == 6 && btnPlus==HIGH) { paramMinuteSunSet=paramMinuteSunSet+10; }
} else {
previousBlink = 0;
}
if (paramLampMode>3) {paramLampMode=0;}
if (paramLampMode<0) {paramLampMode=3;}
GetAllSensorValues();
if ( millis()-timeLast >= 60000 ) {
WebServiceCall("UV", String(sensorUV), "Temp0", String(sensorTemp0), "Temp1", String(sensorTemp1) );
timeLast = millis();
}
ActuorAll();
DisplayLCD();
delay(500);
}
void DisplayLCD(){
String line1 = "";
String line2 = "";
String line3 = "";
float txtTemp0 = round(sensorTemp0*10);
txtTemp0 = txtTemp0/10;
float txtTemp1 = round(sensorTemp1*10);
txtTemp1 = txtTemp1 /10;
/*Serial.print(" | minute timeNow:");
Serial.print(minute(timeNow));
Serial.print(" | A0:");
Serial.print(sensorUVvolt);
Serial.print("V ");
Serial.print(sensorUV);
Serial.print(" mW/cm² | temp0:");
Serial.print(sensorTemp0);
Serial.print("°C | temp1 ");
Serial.print(sensorTemp1);
Serial.println("°C");
*/
u8g2.clearBuffer();
u8g2.setFont(u8g2_font_helvB12_tf);
/* ------- LINE 1 ------- */
if (menu == 1 && previousBlink) line1 = macAddress;
if (menu != 1) line1 = String(txtTemp0).substring(0, 4) + " | " + String(txtTemp1).substring(0, 4) + " | " + String(sensorUV);
/* ------- LINE 2 ------- */
String dsplTime = MinuteToTime(60*hour(timeNow)+minute(timeNow)+paramMinuteTimeNow);
if (menu == 2 && previousBlink) dsplTime = "__:__";
String txtLamp = GetLampMode();
if (menu == 3 && previousBlink) txtLamp = "____";
String txtInternet = "X";
if (isInternetConnected) txtInternet = "@";
if (menu == 4 && previousBlink) txtInternet = "_";
line2 = dsplTime+ " " +txtLamp+ " " +txtInternet;
/* ------- LINE 3 ------- */
String dsplSunRise = MinuteToTime(minuteSunRise+paramMinuteSunRise);
if (menu == 5 && previousBlink) dsplSunRise = "__:__";
String dsplSunSet = MinuteToTime(minuteSunSet+paramMinuteSunSet);
if (menu == 6 && previousBlink) dsplSunSet = "__:__";
line3 = " " +dsplSunRise+ " > " +dsplSunSet;
u8g2.drawStr(0,12, line1.c_str() );
u8g2.drawStr(0,35, line2.c_str() );
u8g2.drawStr(0,55, line3.c_str() );
u8g2.sendBuffer();
}
String GetLampMode(){
if (paramLampMode == 3) {return "ON";}
else if (paramLampMode == 2) {return "OFF";}
else {return "AUTO";}
}
String MinuteToTime(int min) {
int resutHour = min/60;
int resutMin = min - resutHour*60;
String resultTime = String(resutHour);
if (resutHour < 10) {
resultTime = "0" + String(resutHour);
}
if (resutMin < 10 ) {
resultTime = resultTime + ":0" + String(resutMin);
} else {
resultTime = resultTime + ":" + String(resutMin);
}
return resultTime;
}
int WebServiceCall(String sensor1Id , String sensor1Value, String sensor2Id , String sensor2Value, String sensor3Id , String sensor3Value) {
String url = "http://MYWEBSERVICE/save?mac=" + macAddress + "&sensor1id=" + sensor1Id + "&sensor1value=" + sensor1Value + "&sensor1id=" + sensor2Id + "&sensor2value=" + sensor2Value + "&sensor3id=" + sensor3Id + "&sensor3value=" + sensor3Value;
Serial.println("[HTTP] url is:" + url);
// wait for WiFi connection
if ((WiFiMulti.run() == WL_CONNECTED)) {
isInternetConnected = 1;
WiFiClient client;
HTTPClient http;
Serial.print("[HTTP] begin...\n");
if (http.begin(client, url)) { // HTTP
Serial.print("[HTTP] GET...\n");
// start connection and send HTTP header
int httpCode = http.GET();
// httpCode will be negative on error
if (httpCode > 0) {
// HTTP header has been send and Server response header has been handled
Serial.printf("[HTTP] GET... code: %d\n", httpCode);
// file found at server
if (httpCode == HTTP_CODE_OK || httpCode == HTTP_CODE_MOVED_PERMANENTLY) {
String payload = http.getString();
Serial.print("JSON:" + payload);
txtWebService= payload;
StaticJsonDocument<200> doc;
DeserializationError error = deserializeJson(doc, payload);
if (error) {
Serial.print("[HTTP] JSON error ");
Serial.println(error.c_str());
//return;
}
JsonObject root = doc.as<JsonObject>();
txtTime = root["time"].as<String>();
txtSunRise = root["sunRise"].as<String>();
txtSunSet = root["sunSet"].as<String>();
minuteSunRise = 60 * txtSunRise.substring(11, 13).toInt() + txtSunRise.substring(14, 16).toInt();
minuteSunSet = 60 * txtSunSet.substring(11, 13).toInt() + txtSunSet.substring(14, 16).toInt();
setTime(txtTime.substring(11, 13).toInt(), txtTime.substring(14, 16).toInt(), txtTime.substring(17, 19).toInt(), txtTime.substring(8, 10).toInt(), txtTime.substring(5, 7).toInt(), txtTime.substring(0, 4).toInt()); // Another way to set
//Serial.printf("[TIME] TimeNow %s\n", txtTime);
//Serial.printf("[TIME] hour %d\n", txtTime.substring(11, 13).toInt());
//Serial.printf("[TIME] minute %d\n", txtTime.substring(14, 16).toInt());
}
} else {
Serial.printf("[HTTP] GET... failed, error: %s\n", http.errorToString(httpCode).c_str());
}
http.end();
} else {
Serial.printf("[HTTP} Unable to connect\n");
//isInternetConnected = 0;
}
} else {
isInternetConnected = 0;
}
}
