How do I find my 1N 4007 diodes?

Question

I am a beginner to Arduino, and a relative beginner to electronics in general. I have the official Arduino Starter Kit. I've looked through my bag of components looking for a black diode but was unable to find it among all of the LEDS & the other black components.

score 1 · Answer 1 · answered Feb 07 '17 at 22:08

While the ArduinoStarterKit page at arduino.cc lists “5 Diodes [1N4007]” as part of it, and has a picture where 5 diodes apparently appear slightly left of center in the top row, several other pictures that come up in a google images search for official Arduino Starter Kit apparently don't show the diodes. Eg, as at arduino starter kit. But 4 Best Starter Kits for Arduino Beginners does show them.

Note, unless you are working with medium to high AC voltages (eg above 50 V) you can substitute 1N4001 - 1N4004 which have lower PIV ratings but also slightly lower forward voltage drop. For many beginning projects, 1N4148 signal diodes will be adequate and perhaps less expensive.

score 1 · Answer 2 · answered Feb 07 '17 at 23:04

1

1N4007 are usually black with a white stipe indicating the cathode. Use a magnifying glass and you should be able to see the marking.

answered Feb 07 '17 at 23:04

Andre Courchesne

676
5
11

score 1 · Answer 3 · edited Feb 08 '17 at 06:36

1

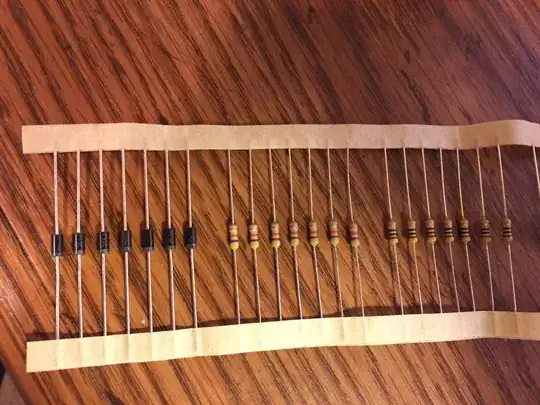

They are stuck next to a string of resistors.

edited Feb 08 '17 at 06:36

Nick Gammon

38,901
13
69
125

answered Feb 08 '17 at 00:54

moonman239

141
3

score 1 · Answer 4 · answered Feb 08 '17 at 05:31

1

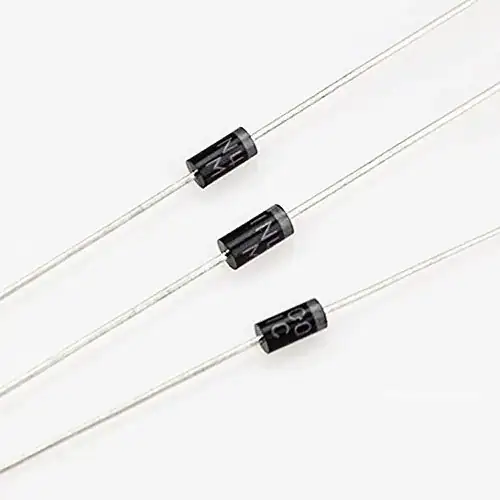

This is image of 1N4007 diodes. I think now you can find them easily.

answered Feb 08 '17 at 05:31
