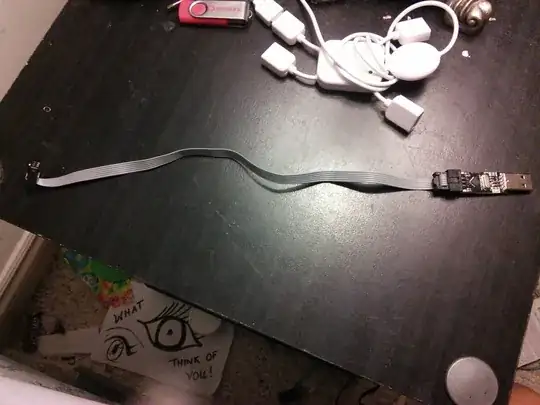

I am having trouble figuring out the pinout of my 6 - pin USBasp Chinese clone that I got off eBay. BEFORE YOU TELL ME TO LOOK AT THE PINOUT DIAGRAMS, I can tell you that my version of the usbasp has no way of telling which way is up and which ways is down. Images:

Tacocat 4642
  • 11
  • 1
  • 3

1 Answers1

2

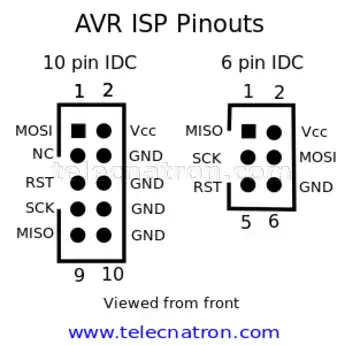

Look at the following pinout diagram (from telecnatron.com):

enter image description here

The right-hand diagram above shows the USBASP-board pin-header pin assignments, when you are looking into the pin-header. The header shell will have a triangle marking pin 1. Note that pin 1 is on the same side of the connector as the key (the ridge on the cable connectors, the slot on the pin-header shell). Each socket on the cable also will have a triangle marking pin 1.
