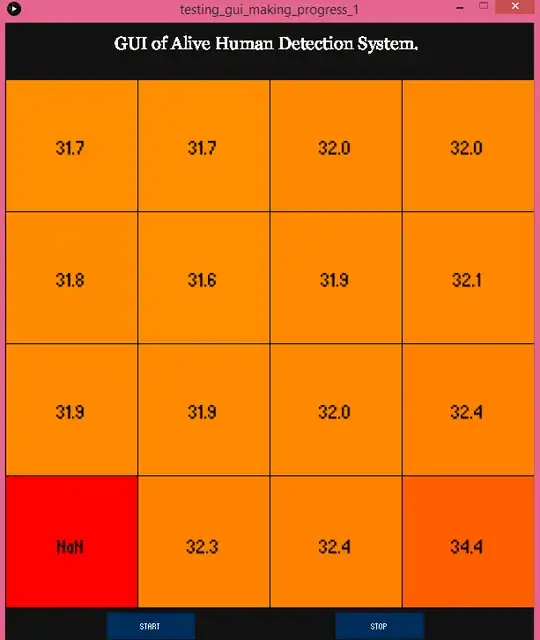

I am trying to get data from D6T Omron thermal sensor. It works fine with both Arduino and Processing when I connect it to pc directly. However, it seems to always cannot read my last data in my data array when i use Xbee on them. It results in a NaN for my last data in my array in processing display [Fig 1].
Anyone having any thoughts on this? Any help will be much appreciated! =D
Another problem i having here is that i was trying to make a popup window when my sensor senses a sum of 34*4 in the center pixels with no success currently. The last data in the array returns in NaN error again and the program is not responding after that. [Similar with Figure 1.] D:
It actually works fine until we reach this stage "Serial.write(0x03)" from Arduino to processing when it senses a sum of 34*4 in the center. I am confused. Any idea on how to improve that? =) Thanks a lot in advance!
Attached below is my code (Arduino sketch):
#include <Wire.h>
#include <WireExt.h>
#define D6T_addr 0x0A
#define D6T_cmd 0x4C
int rbuf[35];
float tdata[16];
float t_PTAT;
float top_sum, bottom_sum, left_sum, right_sum, center_sum, center_row_sum;
void setup()
{
Wire.begin();
Serial.begin(9600);
Serial.flush();
}
void loop()
{
int i;
if (Serial.available() > 0) {
int inByte = Serial.read();
if (inByte == 0x0001) {
Wire.beginTransmission(D6T_addr);
Wire.write(D6T_cmd);
Wire.endTransmission();
if (WireExt.beginReception(D6T_addr) >= 0) {
i = 0;
for (i = 0; i < 35; i++) {
rbuf[i] = WireExt.get_byte();
}
WireExt.endReception();
t_PTAT = (rbuf[0]+(rbuf[1]<<8))*0.1;
for (i = 0; i < 16; i++) {
tdata[i]=(rbuf[(i*2+2)]+(rbuf[(i*2+3)]<<8))*0.1;
}
output_csv();
delay(250);
}
top_sum= tdata[0] + tdata[1] + tdata[2] + tdata[3];
bottom_sum= tdata[12] + tdata[13] + tdata[14] + tdata[15];
right_sum= tdata[0]+ tdata[4] + tdata[8] + tdata[12];
left_sum= tdata[3] + tdata[7] + tdata[11] + tdata[15];
center_sum= tdata[5] + tdata[6] + tdata[9] + tdata[10];
center_row_sum= tdata[1] + tdata[2] + tdata[5] + tdata[6] + tdata[9] + tdata[10] + tdata[13] + tdata[14];
if (center_sum>34*4)
{
//Serial.flush();
Serial.write(0x0003);
delay(100);
}
}
}
}
void output_csv() {
for (int i = 0; i < 16; i++) {
Serial.print(tdata[i]);
if (i < 15) {
Serial.print(",");
}
else {
Serial.println();
}
}
}
Attached below is my code in Processing:
import processing.serial.*;
import controlP5.*;
import javax.swing.JOptionPane.*;
ControlP5 cp5;
javax.swing.JOptionPane JOptionPane;
Textlabel myTextlabelA;
boolean canStart = true;
boolean canInput = false;
boolean Start = false;
String typedText = "Comments: ";
PFont font;
int confirm;
float[] tdata = new float[17];
float tptat; // PTAT
String portName;
//int serialport = 0;
String buf;
float colourGreen; //change green in relation to temperature
int lbTemp = 25; //lowest relative temperature
int hbTemp = 40; //highest relative temperature
Serial myPort; // Create object from Serial class
void setup() {
size(600,768);
background(ControlP5.BLACK);
myPort = new Serial(this, "COM15", 9600);
myPort.clear();
cp5 = new ControlP5(this);
myTextlabelA = cp5.addTextlabel("label")
.setText("GUI of Alive Human Detection System.")
.setPosition(120,10)
.setColorValue(#FFFAF0)
.setFont(createFont("Georgia",20))
;
cp5.addButton("Start")
.setPosition(115, 670)
.setSize(100,30)
;
cp5.addButton("Stop")
.setPosition(375, 670)
.setSize(100,30)
;
}
public void Start(int theValue) {
println("Initialising...");
println("Connected.");
Start = !Start;
}
public void Stop(int theValue) {
println("Shuting Down...");
myPort.write(0x02);
Start = !Start;
}
void draw() {
if (Start){
myPort.write(0x01);
delay(100);
while (myPort.available() > 0) {
delay(500);
buf = myPort.readString();
myPort.clear();
tdata = float(split(buf, ','));
for (int i = 0; i <16; i++) {
colourGreen = map(tdata[i],lbTemp,hbTemp,255,0);
fill (255,colourGreen,0);
if (i == 0)
{ rect(450,64,150,150);}
else if (i == 1)
{ rect(300,64,150,150);}
else if (i == 2)
{ rect(150,64,150,150);}
else if (i == 3)
{ rect(0,64,150,150);}
else if (i == 4)
{ rect(450,214,150,150);}
else if (i == 5)
{ rect(300,214,150,150);}
else if (i == 6)
{ rect(150,214,150,150);}
else if (i == 7)
{ rect(0,214,150,150);}
else if (i == 8)
{ rect(450,364,150,150);}
else if (i == 9)
{ rect(300,364,150,150);}
else if (i == 10)
{ rect(150,364,150,150);}
else if (i == 11)
{ rect(0,364,150,150);}
else if (i == 12)
{ rect(450,514,150,150);}
else if (i == 13)
{ rect(300,514,150,150);}
else if (i == 14)
{ rect(150,514,150,150);}
else if (i == 15)
{ rect(0,514,150,150); }
if (tdata[i]<5) {fill(255);} else {fill(0);}
if (i ==0)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]),525, 139);}
else if (i == 1)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]),375, 139);
}
else if (i == 2)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 225, 139);
}
else if (i == 3)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]),75, 139);
}
else if (i == 4)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 525, 289);
}
else if (i == 5)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 375, 289);
}
else if (i == 6)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 225, 289);
}
else if (i == 7)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 75, 289);
}
else if (i == 8)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 525, 439);
}
else if (i == 9)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 375, 439);
}
else if (i == 10)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 225, 439);
}
else if (i == 11)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 75, 439);
}
else if (i == 12)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 525, 592);
}
else if (i == 13)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 375, 592);
}
else if (i == 14)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 225, 592);
}
else if (i == 15)
{
textAlign(CENTER, CENTER);
textSize(20);
text(str(tdata[i]), 75, 592);
}
}
delay(250);
CheckSerial();
}
}
}
void CheckSerial()
{
confirm = myPort.read();
if (confirm == 0x03)
{
int dialogResult = JOptionPane.showConfirmDialog (null, "Human found? Please Confirm!!", "Alert!", JOptionPane.YES_NO_OPTION, JOptionPane.QUESTION_MESSAGE);
if(dialogResult == JOptionPane.YES_OPTION)
{
//futher action
}
}
}
