Arduino fried? Onboard blink ok; offboard blink not ok

Question

EDIT :

I have plenty of weird bugs. I will open another thread, and come back to this one when I have better understanding, rather than completely modify this one halway through. Sorry to every answerer for my electronic incompetence which led me to ask the wrong questions; I hope the other thread makes more sense.

I have recently exhumed an arduino from a cupboard, and can't seem to make even a blinking LED circuit work correctly.

Here's the sketch :

void setup() {
  pinMode(9, OUTPUT);
}

void loop() {
  digitalWrite(9, HIGH);
  delay(1000);
  digitalWrite(9, LOW);
  delay(1000);
}

This has been tried without the circuit, on pin 13, using the onboard LED, and it worked.

However, using the following circuit, it did not result in a blinking LED, using several pins (8, 9, 12, 13) and LEDS.

May I assume the arduino is fried?

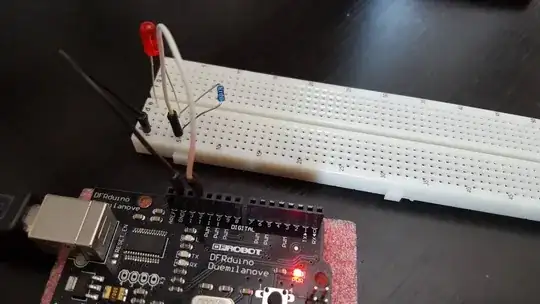

Here is a thumbnail of the circuit :

score 1 · Answer 1 · edited Apr 13 '17 at 12:50

1

Here's a guide posted by Nick Gammon for checking if your Arduino is bricked Is My Arduino Bricked ?

edited Apr 13 '17 at 12:50

Community

1

answered Mar 31 '16 at 20:25

Bra1n

1,028
1
7
12

score 0 · Answer 2 · answered Mar 31 '16 at 17:00

Try lighting up the LED without using any resistance in the middle, if that doesn't work try with a LED which consumes less current even if that doesn't work put the pin to HIGH state in code and measure the voltage of the given pin using a multimeter it should read above 3.3V. If neither of these work then you can be sure that your arduino is fried

JRobert · Answer 3 · 2016-04-01T13:55:53.787

0

It it possible the non-working LED got wired backward (it wouldn't be the first time!)? If the LED is clear enough, hold it up to the light and look inside the plastic bubble. There will be two bits of metal, one attached to each lead. One of them is significantly larger than the other; that's the cathode and it needs to be connected to the more negative side of the circuit. Here's a picture.

edited Apr 01 '16 at 13:55

answered Apr 01 '16 at 00:52

JRobert

15,407
3
24
51

score 0 · Answer 4 · answered Apr 01 '16 at 03:38

You haven't exactly got the LED connected to pin 9, as in the code, have you?

I find it hard to believe that you can upload new sketches, but none of the pins work. Try pins 0 or 1, in the sketch, for example. Or the whole lot:

void setup() {
  for (int i = 0; i < 20; i++)
    pinMode (i, OUTPUT);
}

void loop() {
  for (int i = 0; i < 20; i++)
  {
    digitalWrite(i, HIGH);
    delay(1000);
    digitalWrite(i, LOW);
    delay(1000);
  }
}

Now methodically test every pin.

What happens if you plug the white jumper into 5V rather than the current digital pin 12

The LED doesn't light.

Something's wrong with your testing. The processor cannot be powering up, and accepting new sketches, yet not have power to the +5V pin.

score 0 · Accepted Answer · answered Apr 01 '16 at 14:46

0

My arduino is not bricked, I just don't know how many things I don't understand about electronics, and make every single mistake I can make, especially while cabling.

answered Apr 01 '16 at 14:46

pouzzler

159
4
