I have an Arduino controlling a relay. I was taking a look at the timings using a logic analyzer and at the onset of the relay switching, it quickly switches again.

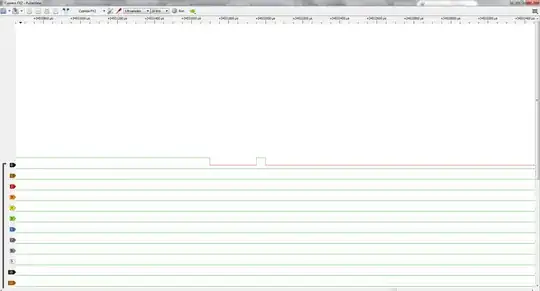

This seems to be occurring randomly and I thought it could be highlighting a problem with my code but I wondered if it might just be a 'relay bounce' due to the speed of the switch. I've attached an image below. Any feedback is greatly appreciated. Thanks.

enter image description here

dlu
  • 1,661
  • 2
  • 15
  • 29
oduffy
  • 79
  • 1
  • 6

1 Answers1

2

According to your plot, the pulse length is 50 microseconds. Typical mechanical relay switching time is 10 milliseconds, which is 200 times longer. It's next to impossible that the pulse is due to your software powering the relay back on for a moment, since the relay simply could not react to such a short input pulse.

So yeah, it's just a bounce. You can safely ignore it in most cases, unless you're counting events or doing something similar. In the latter case, there are both hardware and software debouncing techniques, which share the basic idea of a low-pass filter.
